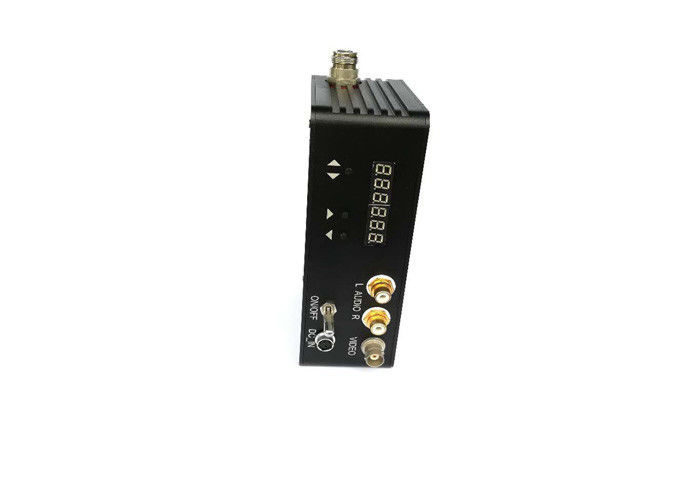

H.264 Long Range Wireless AV Transmitter Non Line Of Sight Good Heat Dissipation

H.264 Long Range Wireless AV Transmitter Non Line Of Sight Good Heat Dissipation

  • H.264 Long Range Wireless AV Transmitter Non Line Of Sight Good Heat Dissipation
H.264 Long Range Wireless AV Transmitter Non Line Of Sight Good Heat Dissipation
Product Details:
Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-220T
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Professional carton box package
Delivery Time: 2~3 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
DC Input: DC 12~15V Video Input: CVBS
Audio Channel: 2 Channel Working Bandwidth: 2MHZ/4MHZ/8MHZ
Operating Frequency: 300~2400MHz,stepping 1MHz Output Power: 32dbm
High Light:

av wireless sender

,

wireless av sender receiver

H.264 wireless AV transmitter long range non line of sight cofdm video Transmitter





Product introduction





HN-220T Low-Delay COFDM Wireless Image Transmission Transmitter, which adopts composite NTSC/PAL video preprocessing technology and efficient video coding algorithm to improve coding efficiency, reduce coding delay, algorithm optimization,anti-error rate and further improve the image quality, and the best image compression effect can be achieved at the lowest bit rate.









Key Features





●Supports high-definition analog video NTSC/PAL input

●Adopt COFDM modulation technology, MPEG-2 image compression processing

●Highly integrated modular design, small size

●Support NLOS high speed mobile transmission

●Full aluminum alloy design, good heat dissipation







Technical Characteristic





Model HN-220T
Input voltage DC 12~15V
Working Current 2A_12V
Video input CVBS:480i/576i
Audio channel 2 channel
Working bandwidth 2.0/4.0/8.0MHz
Operating frequency 300~2400MHz,stepping 1MHz
Output power 32dBm
RF interface N type
video encoding H.264
Modulation COFDM
Constellation QPSK
Parameter control method Set related parameters through LED digital tube
Dimension 158mm*100mm*52mm
