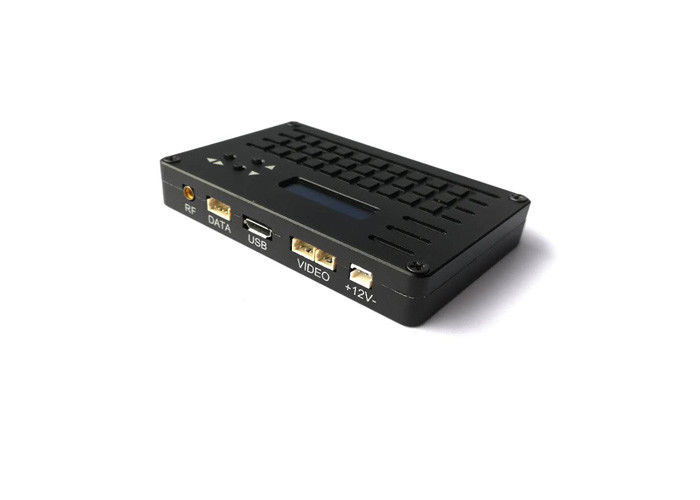

Mini Size Wireless AV Transmitter Application For Small UAV And Robot System

Mini Size Wireless AV Transmitter Application For Small UAV And Robot System

  • Mini Size Wireless AV Transmitter Application For Small UAV And Robot System
Mini Size Wireless AV Transmitter Application For Small UAV And Robot System
Product Details:
Place of Origin: shenzhen
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-512AV
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2~3 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Working Voltage: DC 6~12V Video Input: CVBS
Channel Bandwidth: 2/4/8MHz Working Frequency: 300~1500MHZ,Stepping 1MHz
Encryption: AES128 FEC: 1/2,2/3,3/4,4/5,5/6,7/8
Guard Interval: 1/32,1/16,1/8,1/4 Video Encoding: MPEG-2
Modulation: COFDM Output Power: 20dbm
High Light:

av signal transmitter

,

wireless av sender receiver

Mini size wireless AV transmitter application for small UAV and Robot system



Product introduction



HN-512AV H.264 COFDM wireless video transmission equipment.Using high efficiency and innovative H.264 compression encoding,integrated molding design,integrating digital modulation,audio and video compression,highly integrated high-definition movement,non line-of-sight digital image transmission equipment,small size, light weight, can be in a building block environment or high speed mobile transmission high-quality video and audio.This product is widely used in high quality and high standard requirements of aerial photography, covert detection,video surveillance,wireless video transmission in real time and other fields.



Key feature



●Using COFDM modulation technology,H.264 image encoding technology

●Support 128 bit dynamic AES encryption

●Highly integrated combination of modular design

●The fin-type aluminum chassis, small size, light weight, easy to carry

●Support non line of sight (NLOS), high-speed mobile transmission





Technical Specification



Model HN-512AV
Working voltage DC 6~12V
Working current 420mA_12V
Video input CVBS:480i/576i
Channel bandwidth 2/4/8MHz
Working frequency

300~1500MHZ,Stepping 1MHz

(can customized other frequency)

Output power 20 dBm (can cusomized)
RF Antenna interface MMCX
Encryption mode AES 128
FEC 1/2,2/3,3/4,4/5,5/6,7/8
Guard interval 1/32,1/16,1/8,1/4
Video encoding MPEG-2
Modulation COFDM
Modulation mode QPSK,QAM16,QAM64
Parameter control mode Through external LCD display panel or pin setting related parameters
Dimension 73mm*48mm*12mm
Weight 54g
