Small Full Duplex IP Radio Modem For UAV Drone System Low Power Consumption

China Small Full Duplex IP Radio Modem For UAV Drone System Low Power Consumption supplier

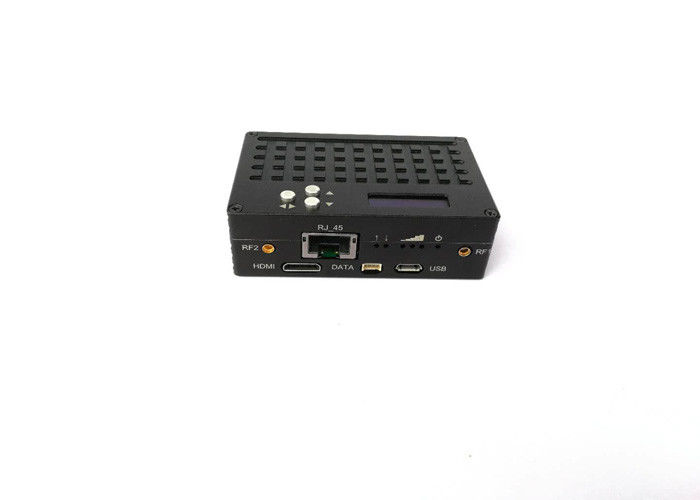

Large Image :  Small Full Duplex IP Radio Modem For UAV Drone System Low Power Consumption

Product Details:

Place of Origin: Shenzhen
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-550

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Professional carton box package
Delivery Time: 2~3 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Bandwidth: 2MHZ/4MHz/8MHz Modulation: TDD_COFDM,Time Division Duplex Mode
Data Transmission: RS232/RS485/RS422 Output Power: 30dbm
Dimensions: 77mm*51mm*24mm Weight: 120g
Video Encoding: H.264

Full Duplex IP radio modem COFDM Wireless Video Transmitter For UAV Drone System





Product Introduction:



HN-550 H.264 TDD_COFDM this product is our company released latest zero-latency H.264 1080P HD wireless transmission equipment,the use of advanced time division processing technology and leading COFDM modulation technology,providing a complete two-way data transmission channel (supports AES_128 encryption), and ultra-low latency (20ms) high-definition video transmission channel, the perfect realization of  real-time,high-speed mobile data, audio and video transmission.







Applications:

Widely application for UAV system, high speed railway, fire fighting, security, intelligence control and other complex environments.







Product features:



Provide ultra-low latency (20ms) full HD 1080P video transmission



Support up to 20Mbps data flow, adaptive dynamic stream allocation technology



Support multiple bandwidth regulation (2M/4M/8/), adaptive modulation and manual modulation mode selection



Support diversity antenna receiver



Support 128 bit AES encryption



Support transparent PTP&PMD network transmission technology



Support non line of sight (NLOS), high-speed mobile transmission



Provide standard RS-232 & RS-485 + RJ45 + Mini HDMI interface



High definition OLED panel digital display, simple interface easy to operation



Small size, light weight, low power consumption





HN-550 Technical parameters:



Model HN-550TX & HN-550RX
Power input DC 7~17V
Power consumption 9W
Current 12V_1A (full load maximum output power)
Ethernet 10/100 BaseT,Auto-MDI/X,IEEE 802.3
TCP,UDP,TCP/IP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS
Video input Mini HDMI interface, RJ45
Data input RS-232&RS-485
RJ45
Output frequency 2405MHz-2470MHz,Step 1MHz adjustable
Output power 0dbm,20dBm-30dBm
RF Antenna interface MMCX
Bandwidth 2.0 MHz /4.0MHz/8.0MHz
Encryption 128 bit AES
Correction mechanism 32 bit of CRC,ARQ
Modulation TDD-COFDM,Time division duplex mode
Video encoding H.264
Parameter control By adjusting the parameters of OLED control panel
Dimensions 77mm*51mm*24mm
Weight 120g
