UHF Band Ethernet IP Radio Modem For Full Duplex UAV Video System 4Mbps

China UHF Band Ethernet IP Radio Modem For Full Duplex UAV Video System 4Mbps supplier

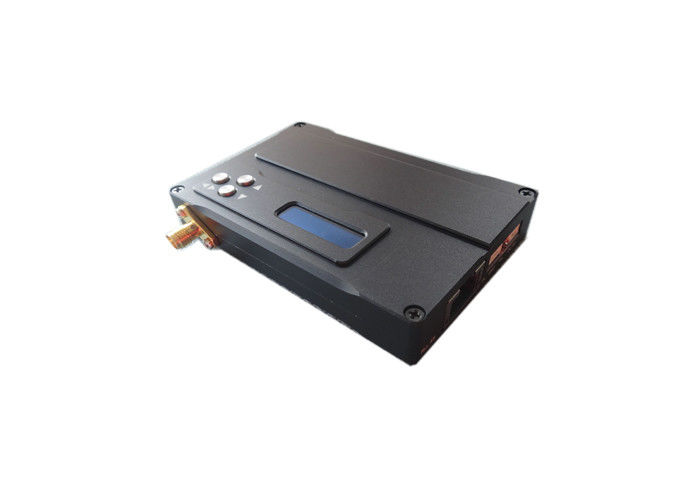

Large Image :  UHF Band Ethernet IP Radio Modem For Full Duplex UAV Video System 4Mbps

Product Details:

Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-570

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Professional carton box package
Delivery Time: 1~2 working days
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Working Votage: DC 6~17V Working Current: 600mA_12V/7.2W
Output Power: 10~30dbm Transmission Speed: 4Mbps
Receiving Sensitivity: -90dBm Encryption: 128 Bit AES Encryption
Modulation: COFDM Constellation: QPSK,QAM16,QAM64
Dimension: 82mm*55mm*16mm Weight: 125g

UHF band IP radio modem Ethernet Radio link full duplex UAV video transceiver​





Key Feature:



Full duplex sending and receiving HD H264 video or SD and data.
Configure menu operation in real time preset
Support 128 bit AES encryption
Support transparent PTP&PMD network technology
Support for non sight distance (NLOS) and high speed mobile transmission
Provide the standard RS_232&RS_485 + RJ45 interface
Support high standard industrial applications
High clear OLED digital panel display, simple interface easy to operation
Small volume, light weight, easy to carry, cooling aluminum shell





HN-570 Technical parameters



Model HN-570
Working votage DC 6~17V
Working current 600mA_12V/7.2W(30dBm output power)
Transmission interface

RJ_45(Transparent transmission)

RS-232(Transparent transmission)

Bandwidth 2.0/4.0M
Operating frequency

830MH~930MHZ Stepping 1MHz

(can be customized other frequencies)

Output power 10dBm-30dBm
transmission speed 4Mbps
Receiving sensitivity -90dBm
Encryption 128 bit AES encryption
Modulation COFDM
Modulation Type: QPSK,QAM16,QAM64
RF interface SMA female
Parameter control By adjusting the parameters of OLED control panel
Dimension 82mm*55mm*16mm
Weight 125g





Outline drawing:



UHF Band Ethernet IP Radio Modem For Full Duplex UAV Video System 4Mbps
