Handheld COFDM Wireless Video Transmitter And Receiver HD -105dBm/2MHz

Handheld COFDM Wireless Video Transmitter And Receiver HD -105dBm/2MHz

  • Handheld COFDM Wireless Video Transmitter And Receiver HD -105dBm/2MHz
Handheld COFDM Wireless Video Transmitter And Receiver HD -105dBm/2MHz
Product Details:
Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-320
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: professional carton box package
Delivery Time: 1~2 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Video Output: HDMI And CVBS Receiving Sensitivity: -105dBm/2MHz
 Bandwidth: 2/2.5/4/8MHz  Radio Frequency: 300MHz~860MHZ,Stepping 1MHz
 Demodulation: COFDM  Decryption: AES
Decoding: MPEG2/H.264 Demension: 125mm*73mm*26mm
High Light:

rf video receiver

,

portable video receiver

Mini H.264 Cofdm video Receiver HD handheld 1080P diversity reception





Product introduction

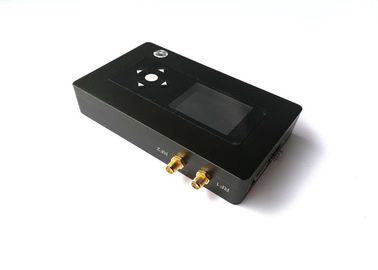

HN-320 HD H.264/MPEG2 COFDM Wireless video transmission Receiver. Using advanced multi-carrier diversity reception technology.Support high-speed movement and non-line of sight reception.Simple and efficient to use control interface.It’s can simultaneously output multiple video including HD and SD video.Widely used in security, fire fighting, radio and television, emergency communications and ect.Receiving wireless signals,realize the remote video transmission and monitoring under the condition of mobile non line-of-sight.





Features





● Support COFDM model H.264/MPEG2 full-featured video decoding



● Support NLOS,High-speed movement transmission



● Digital operation panel and display,easy to use



● Support dual antenna multi-carrier diversity reception







HN-320 Technical parameters



Model HN-320
Voltage DC 6~15V
Current 350mA_12V
Receive sensitivity -102dBm/2MHz
Video output CVBS:Support D1 SD resolution
HDMI:Support HD1080,720P,576,480
Bandwidth 2/2.5/4/8MHz
Radio frequency 300MHZ—860MHz,stepping 1MHz
Input SMA
Decoding MPEG2/H.264
Demodulation COFDM

Parameter control



mode

Through the LCD display panel to set the



related parameters

Dimension 125mm*73mm*26mm
