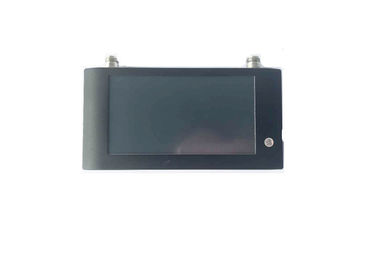

7 Inch Hand Held COFDM Video Receiver With Touch Screen Double Antenna

7 Inch Hand Held COFDM Video Receiver With Touch Screen Double Antenna

  • 7 Inch Hand Held COFDM Video Receiver With Touch Screen Double Antenna
7 Inch Hand Held COFDM Video Receiver With Touch Screen Double Antenna
Product Details:
Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-430R
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2~3 working days
Payment Terms: T/T
Supply Ability: 1000pcs Per month
Contact Now
Detailed Product Description
Demodulation: Cofdm Radio Frequency: 300-860MHz,stepping 1MHz
Video Display: 7 Inch HD TFT LCD Decoding: MPEG2/H.264
Video Output: HDMI Bandwidth: 2/2.5/4/8MHz
High Light:

cofdm diversity receiver

,

rf video receiver

7 inch Hand-held cofdm video receiver full HD 1080P touch screen dual antenna





Product introduction





HN-430R COFDM project type (with all-band frequency sweep function)hand-held video Receiver.small size,light weight.The use of advanced multi-carrier diversity reception technology.Support high-speed mobile and non-line sight reception.Using 7inch HD TFT full touch control display,provides the simple handling experience and the perfect image display, at the same time adds the all-band frequency sweep function,it can quickly search stray intervention in the current areas.The product will provide the reference data for engineering installation.


The product are widely used in security, fire protection, emergency communications,and so on.







Product features







●Support COFDM model H.264/MPEG2 full function video decoding
● Support dual antenna multi-carrier diversity reception
● Support mutil-band sweep function
● High resolution 7inch touch control display
● Battery integrated design, small size, light weight, high reliability









Technical characteristics





Model HN-430R
Voltage DC12V
Receiving sensitivity -104dBm/2MHz
Video output HDMI connection:high definition digital video output
Audio output Options:connected with 3.5mm earphone
Radio Frequency The optional 300-860MHz,Stepping 1MHz
Bandwidth 2/2.5/4/8MHz
Demodulation COFDM
Decoding MPEG2/H.264
Decryption AES
Parameter control mode Through the TFT touch screen setting related parameters
RF signal input port N-type(50Ω) high performance dual channel diversity reception
Dimensions 214mm*115mm*40mm
