Industrial Grade COFDM Video Receiver For NLOS Mobile Transmisision 1/2/4/8MHZ

China Industrial Grade COFDM Video Receiver For NLOS Mobile Transmisision 1/2/4/8MHZ supplier

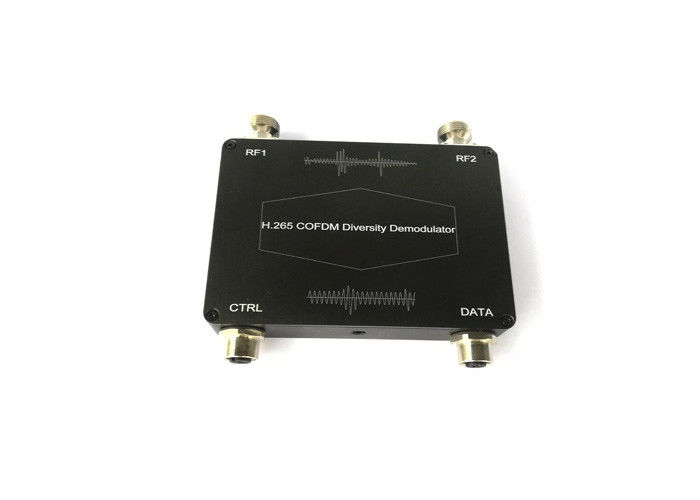

Large Image :  Industrial Grade COFDM Video Receiver For NLOS Mobile Transmisision 1/2/4/8MHZ

Product Details:

Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-811

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2~3 working days
Payment Terms: T/T
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Decoding: H.265 DC Input Range: DC 6~17V
Channel Bandwidth: 1/2/4/8MHZ Radio Frequency: 300MHz~860MHz,Steeping1MHz
Demodulation: COFDM Dimension: 106mm*65mm*17mm

Industrial Grade COFDM Video Receiver For NLOS Mobile Transmisision 1/2/4/8MHZ





Product introduction



HN-811 H.265 COFDM demodulation module supports narrowband (1MHz) COFDM multi-carrier applications and uses high-speed dual-channel diversity reception technology to achieve high-sensitivity long-distance reception.

The module adopts highly integrated embedded design, provides transparent IP data interface, and outputs balanced and stable high-speed data stream. It can help you to design long-distance wireless links more conveniently and quickly, and provide HD digital broadcasting, security system, Applications in public security, armed police, firefighting, etc., widely used in multimedia video streaming, high-standard unmanned control systems, and intelligent control industries.







Key Features





l COFDM ultra-narrowband demodulation technology

l Support military-grade non-standard 128-bit AES decryption

l Transparent network / serial port high rate transmission

l Support dual antenna multi-carrier diversity reception

l Support full band / ultra narrow band / multi bandwidth demodulation (1M / 2M / 4M / 8M)

l Provide functional setting and operation based on network platform. simple interface and easy to use.







Technical characteristics





Model HN-811
DC input range DC 6~17V
Current 320mA_12V/4W
Working frequency 300MHz~860MHz,Steping1MHz
(other frequencies on request)
Channel bandwidth 1/2/4/8M
RJ_45 1*RJ_45
UART port unidirectional transparent TTL serial data reception
Decryption method Dynamic 128 bit AES
Video decoding H.265
Demodulation COFDM
Parameter control method Setting relevant parameters through network debugging software
Dimension 106mm*65mm*17mm
