Zero - Encoder Miniature UAV Data Link For Intelligence Control HDMI H.264 1W Output

China Zero - Encoder Miniature UAV Data Link For Intelligence Control HDMI H.264 1W Output supplier

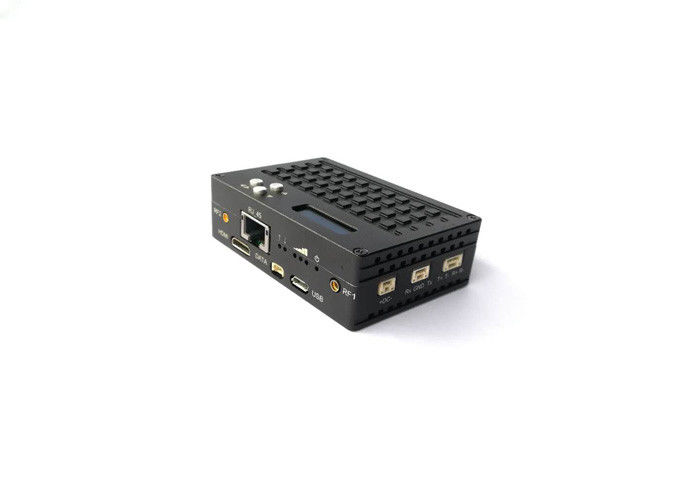

Large Image :  Zero - Encoder Miniature UAV Data Link For Intelligence Control HDMI H.264 1W Output

Product Details:

Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-550

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Professional carton box package
Delivery Time: 2~3 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Video Input: HDMI And RJ-45 Output Frequency: 2405~2477MHZ
Output Power: 20dBm-30dBm Bandwidth: 2MHZ/4MHZ/8MHZ
Encryption: 128 Bit AES Modulation: TDD-COFDM,Time Division Duplex Mode
Video Encoding: H.264 Dimensions: 77mm*51mm*24mm
Weight: 120g

Zero-encoder mini HDMI H.264 1W output miniature full duplex cofdm wireless video transceiver



Product Introduction:



HN-550 H.264 TDD_COFDM this product is our company released latest zero-latency H.264 1080P HD wireless transmission equipment,the use of advanced time division processing technology and leading COFDM modulation technology,providing a complete two-way data transmission channel (supports AES_128 encryption), and ultra-low latency (20ms) high-definition video transmission channel, the perfect realization of real-time,high-speed mobile data, audio and video transmission.



Applications:



Widely application for UAV system, high speed railway, fire fighting, security, intelligence control and other complex environments.



Product features:



● Provide ultra-low latency (20ms) full HD 1080P video transmission

●Support up to 20Mbps data flow, adaptive dynamic stream allocation technology

●Support multiple bandwidth regulation (2M/4M/8/), adaptive modulation and manual modulation mode selection

● Support diversity antenna receiver

● Support 128 bit AES encryption

● Support transparent PTP&PMD network transmission technology

● Support non line of sight (NLOS), high-speed mobile transmission

● Provide standard RS-232 & RS-485 + RJ45 + Mini HDMI interface

● High definition OLED panel digital display, simple interface easy to operation

● Small size, light weight, low power consumption





HN-550 Technical parameters:



Model HN-550TX & HN-550RX
Power input DC 7~17V
Power consumption 12V_1A (full load maximum output power)



Ethernet

10/100 BaseT,Auto-MDI/X,IEEE 802.3
TCP,UDP,TCP/IP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS
Video input Mini HDMI interface, RJ45



Data input

RS-232&RS-485
RJ45
Output frequency 2405MHz-2477MHz,Step 1MHz adjustable
Output power 20dBm-30dBm
RF Antenna interface MMCX
Bandwidth 2.0 MHz /4.0MHz/8.0MHz
Encryption 128 bit AES
Correction mechanism 32 bit of CRC,ARQ
Modulation TDD-COFDM,Time division duplex mode
Video encoding H.264
Parameter control By adjusting the parameters of OLED control panel
Dimensions 77mm*51mm*24mm
Weight 120g
