5Watt IP Radio Modem UAV Data Link Full Duplex Long Range Wireless Communication

China 5Watt IP Radio Modem UAV Data Link Full Duplex Long Range Wireless Communication supplier

Large Image :  5Watt IP Radio Modem UAV Data Link Full Duplex Long Range Wireless Communication

Product Details:

Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-720

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: professional carton box package
Delivery Time: 2~3 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Output Power: 5W Encryption: 128 Bit AES
Modulation: Cofdm 2K Date Rate: 2x30Mbit/s_RJ45 115200bps_RS232
Radio Frequency: 300MHz~860MHz/ 1.2G~2.5GHZ(option) Channel Bandwidth: 1/2/4/8MHz
RF Interface: N Type Dimensions: 260mm*180mm*35mm
Weight: 2.5Kg Data Port: M12 Aeronautical Joint

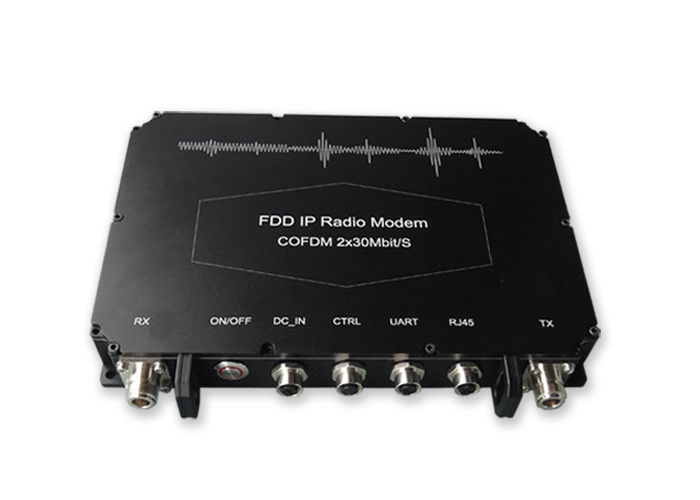

5Watt IP Radio Modem UAV Data Link Full Duplex Long Range Wireless Communication







Product introduction



HN-720(260mm*180mm*35mm) FDD COFDM, using COFDM multi carrier modulation and demodulation technology supporting non sight distance (NLOS) transmission, supports narrow band (1MHz), low latency, high sensitivity long distance transmission applications, and uses transparent IP data interface to provide a balanced and stable high-speed data rate uplink ( 30 Mbit/s) and downlink( 30 Mbit/s), highly integrated embedded design,super linear digital predistortion (Digital Predistortion) RF design, setting network, modulation and demodulation, full frequency RF output in one. It can help you to complete the design of long distance wireless link more conveniently and quickly, and provide high definition digital broadcasting, security system, public security, armed police, fire-fighting and other fields.





Application



It is widely used in multi-channel video stream transmission, high standard unmanned control system and intelligent control equipment.





Key features



  • Using non-standard COFDM modulation and demodulation technology
  • support non line of sight (NLOS) and high-speed mobile transmission.
  • low latency /End to end transmission large data
  • Transparent network / serial data transmission
  • Military level non-standard 128 bit dynamic AES encryption
  • Support full band / ultra narrow band / multi bandwidth modulation (1M/2M/4M/8/).
  • Integrated design, small volume, low power consumption
  • Provide high definition LCD control panel, make the user interface simple and efficiently





Technical characteristics





Model HN-720
Working voltage DC 6~17V
Working current 12V_2.5A
TX output frequency

300MHz~860MHz/

1.2G~2.5GHZ(option)

Stepping 1MHz

RX input frequency

300MHz~860MHz/

1.2G~2.5GHZ(option)

Stepping 1MHz

Channel bandwidth 1/2/4/8MHz
Output Power

27~37dbm(can customized),

Step 1 dBm

Encryption and decryption 128bit AES(Dynamic adjustable key)
Modulation and demodulation COFDM 2K
Data Rate 2x30Mbit/s_RJ45 115200bps_RS232
RF interface N type
Data port M12 aeronautical joint
Dimensions 260mm*180mm*35mm
Weight 2.5kg
