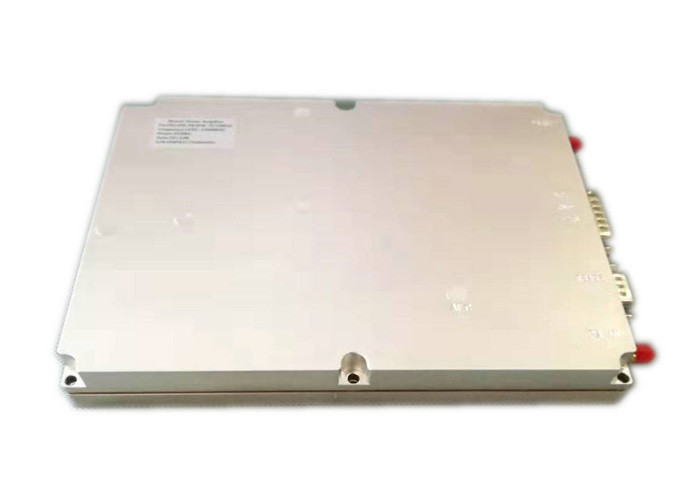

30 Watt RF Power Amplifier Long Range Transmission Frequency Customized 28V

Basic Information

Place of Origin:	China
Brand Name:	Huanuo
Certification:	CE/FCC/ROHS
Model Number:	HN-PA30W

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	Professional carton box package
Delivery Time:	2~3 working days
Payment Terms:	T/T
Supply Ability:	500 pieces per month

Get Best Price Contact Now

Detail Information

Working Frequency:	Can Customized	Working Temperature:	-25～+55℃
Interface Type:	SMA-50KFD	Operating Voltage:	28V
Gain:	50dB±1dB	Input Level:	-7dB
Dimension:	200×150×24mm	Weight:	1198g
Highlight:	radio frequency amplifier , high power rf amplifier

Product Description

30Watt RF Linear power amplifier

30W RF Linear power amplifier

Module name:	30W RF Linear power amplifier	Model type:	HN-PA30W_
Main Features:	Built-in predistortion

Radio frequency index:

Test Item		Index	Note
Power amplifier	Working Frequency (MHz)	can customized
	Max output power(dBm)	45±1dBm
	Working Bandwidth	50MHz
	Gain(dB)	50dB±1dB
	Passband Fluctuation	≤1.5dB	(Peak to peak value)
	Input level(dB)	-7dB
	Shoulder ratio(dBc)	≤-36dBc(Built-in predistortion)
Out of band rejection		9kHz～1GHz:≤-36dBm/30kHz 1GHz～12.75GHz:≤30dBm/30KHz
Operating voltage		+28V Vdc
Working current		≤4.5A@+28V
Working temperature		-25～+55℃
Interface type		SMA-50KFD
Weight		1198g
Module dimensions(mm)		200×150×24mm	Without joint
