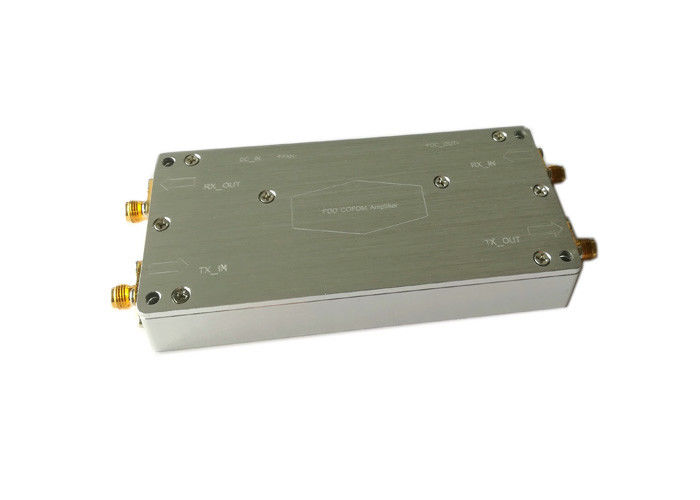

FDD Bi - Directional RF Power Amplifier 2W SMA-50KFD Interface Type -7dB Input Level

Basic Information

Place of Origin:	China
Brand Name:	Huanuo
Certification:	CE/FCC/ROHS
Model Number:	HN-720FDDAMP

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	Professional carton box package
Delivery Time:	2~3 working days
Payment Terms:	T/T
Supply Ability:	500 pieces per month

Get Best Price Contact Now

Detail Information

Working Frequency:	Can Customized	Working Temperature:	-20～+70℃
Interface Type:	SMA-50KFD	Operating Voltage:	11V～+18V
Gain:	32dB±1dB	Input Level:	-7dB
Dimension:	1205315mm	Weight:	176g
Highlight:	radio frequency amplifier , rf power amplifier module

Product Description

2W FDD bi-directional power amplifier

Radio frequency index:

Test Item		Index	Note
Power amplifier	Working Frequency (MHz)	300~860MHz (other frequencies can customized)
	Max output power(dBm)	32dBm±1dBm	(No ALC control)
	Passband group delay(ns)	≤50ns
	Gain(dB)	32dB±1dB
	Passband Fluctuation	≤1dB	(Peak to peak value)
	Input level(dB)	-7dB
	Shoulder ratio(dBc)	≤-30dBc
Operating voltage		+11V～+18V Vdc
Working current		≤1.8A_12V
Working temperature		-20～+70℃
Interface type		SMA-50KFD
Weight		176g
Module dimensions(mm)		1205315mm	Without joint
