Home > Products> RF Power Amplifier> Connectors Interface 50W Bandpass RF filter​ 460MHz

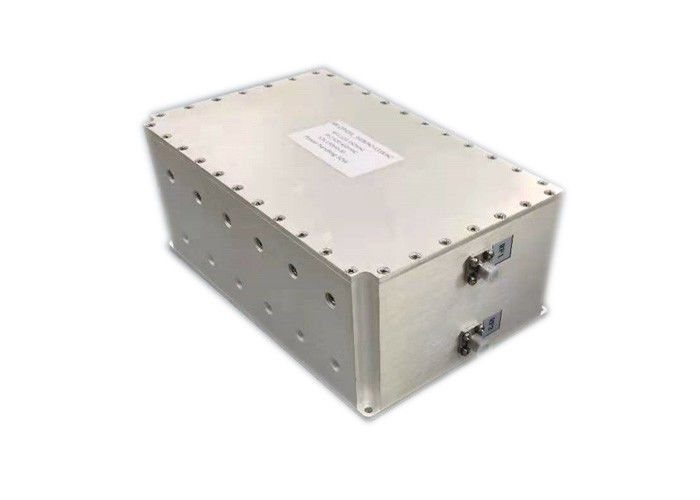

Connectors Interface 50W Bandpass RF filter​ 460MHz

Connectors Interface 50W Bandpass RF filter​ 460MHz
Connectors Interface 50W Bandpass RF filter​ 460MHz
Basic Information
Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-PA2W
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Professional carton box package
Delivery Time: 2~3 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Get Best Price Contact Now
Detail Information
Working Frequency: Can Customized Insertion Loss: ≤1.0dB
Ripple Band: ≤0.7dB VSWR: ≤1.5:1
Connectors Interface: Connectors Interface Surface Color: Original Silver Color
Highlight:

Connectors Interface Bandpass RF Filter​

,

460MHz Bandpass RF Filter​

,

50W Radio Frequency Amplifier

Product Description

Bandpass RF filter​   HN-BPF450_50W



Technical parameters​

Bandpass RF filter

HN-BPF450_50W





  Index items SPECIFICATIONS
1 Frequency Range 440~460MHz
2 Insertion Loss ≤1.0dB
3 Ripple Band ≤0.7dB
4 Rejection ≥40dB@F0±30MHz
5 VSWR ≤1.5:1
6 Impedance 50 OHMS
7 Connectors interface SMA 50K
8 Operation Temperature -40℃~+85℃
9 Storage Temperature -55~+85 ℃
10 Surface Color Original Silver Color
11 Power Handling 50W



Outline structure diagram(Unit:mm)



Configuration





Connectors Interface 50W Bandpass RF filter​ 460MHz 0
