RJ45 SDI CVBS HDMI Output COFDM Decoding Module H.265 Support USB Recording

China RJ45 SDI CVBS HDMI Output COFDM Decoding Module H.265 Support USB Recording supplier

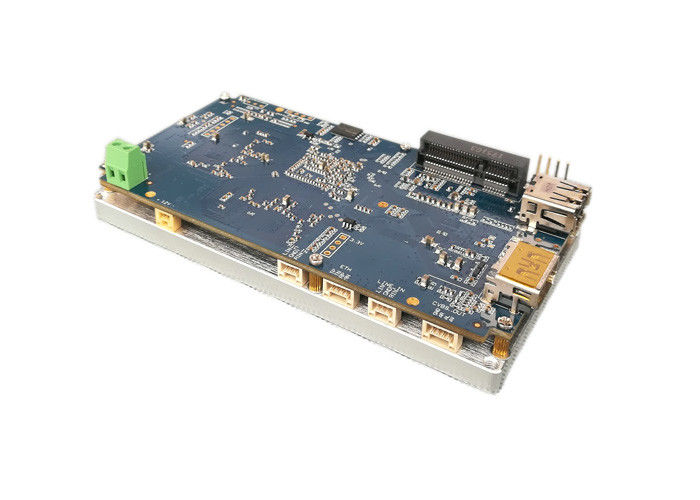

Large Image :  RJ45 SDI CVBS HDMI Output COFDM Decoding Module H.265 Support USB Recording

Product Details:

Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: SK-840DEC

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Professional carton box package
Delivery Time: 1~2 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Video Input: HDMI/CVBS Video Decoding: H.264/H.265
Demodulation: COFDM, USB Interface: Video Recording
Dimension: 120*65*27mm Weight: 132g

H.265 COFDM decoding module support USB recording RJ45 SDI CVBS HDMI output





Product introduction



SK-840DEC HD H.265/H.264 IP COFDM Rx HD decoding module, this product has HDMI output interface, CVBS analog audio and video output interface,SDI interface(need to be customized),USB interface, Ethernet interface. The use of non-line-of-sight (NLOS) transmission COFDM multi-carrier demodulation technology, the use of transparent data interface to provide balanced and stable high-speed rate, support UDP (unicast and multicast) protocol. Receive TS stream from the encoder, can set video output resolution according to different needs, highly integrated embedded design.





Features



l H.265 high-efficiency full HD 1080p decoding compression

l Support H.264/H.265 full-featured image decoding in COFDM mode

l Support for USB image recording

l Support CVBS,HDMIoutput,SDI output is option.

l Digital panel operation and display, easy to use





Technical characteristics



Model SK-840DEC
DC input range DC 6~17V
Current 700mA_12V@8.5Watt
Video output HDMI:HD digital video output
CVBS:SD analog video output
Reverse audio input 2 channels
Audio output 2 Channels
RJ_45 1*RJ_45
TS flow protocol Supports UDP (unicast/multicast) protocols
USB interface Video recording
Video decoding H.264/H.265
Demodulation COFDM
Parameter control method Set related parameters through LCD panel
Dimension 120*65*27mm
Weight 132g
