SDI HDMI CVBS Mini Cofdm Transmitter Audio Video Data Industrial Grade Module DC 6~17V

China SDI HDMI CVBS Mini Cofdm Transmitter Audio Video Data Industrial Grade Module DC 6~17V supplier

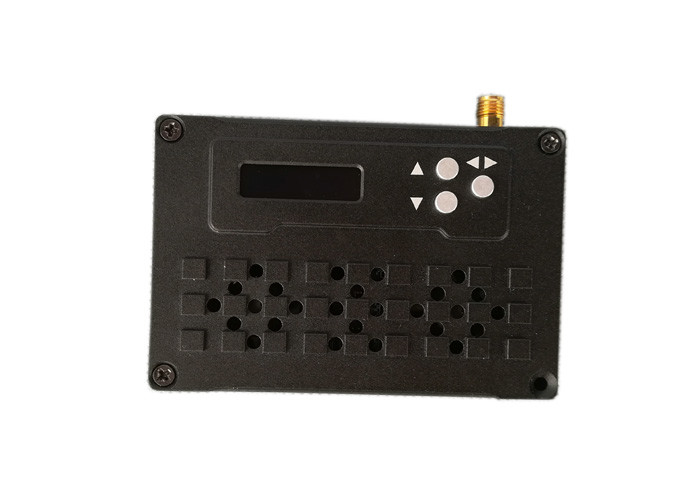

Large Image :  SDI HDMI CVBS Mini Cofdm Transmitter Audio Video Data Industrial Grade Module DC 6~17V

Product Details:

Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-710

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Professional carton box package
Delivery Time: 1~2 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
DC Input Range: DC 6~17V Video Input: SDI/HDMI/CVBS
Date Rate: 30Mbits/S_RJ45 Operating Frequency: 300MH~2500MHz,stepping 1MHz
Video Encoding: H.265 Modulation: COFDM,QPSK,QAM16,QAM64
Encryption: Dynamic 128 Bit AES RF Interface: SMA

SDI HDMI CVBS Mini cofdm transmitter audio video data industrial grade module​


Product introduction

HN-710 H.265 HD COFDM is the latest COFDM video transmitter that supports multi-channel IP input, supports full-featured interface (HDMI/SDI/CVBS) with COFDM transmission in a small, lightweight chassis.It uses a highly integrated embedded design, ultra-linear digital predistortion RF design, high-definition coding, digital modulation, full-band RF output, supports narrowband (1MHz), low latency, transparent data long range transmission applications,improve the reliability in non-line-of-sight and complex environments.

HN-710 supports video/audio/data transmission with selectable modulations bandwidths of 1, 2, 4 and 8MHz,the video quality has been greatly improved compared to other encoders by using advanced features of the H.265 encoder.HN-710 has a simple and user-friendly LCD control panel. The user interface allows quick control of preset selection, RF power, bandwidth, RF frequency,modulator and ect.

The HN-710 transmitter is capable of AES encryption, making it ideal for high-definition digital broadcasting,public security monitoring, covert surveillance, public security, armed police, fire-figting and other secure transmission applications,widely used in multi-channel video streaming, high standard unmanned control system, intelligent control equipment.



Product Features


  • H.265 high-efficiency full HD 1080p compression encoding
  • Full-featured interface, HDMI/SDI/CVBS
  • COFDM ultra-narrow band modulation technology
  • Supports one way UDP unidirectional network video stream
  • Support full-band/ultra-narrow band /multi-bandwidth modulation (1MHZ/2MHZ/4MHZ/8MHZ)
  • Support transparent network/serial port high rate transmission
  • Adaptive multi-video format input
  • Configuration menu real-time preset
  • Supports 128-bit dynamic AES encryption
  • Highly integrated modular combination design
  • Compact size, light weight, easy to carry, using heat sink aluminum chassis



Specifications:


Model HN-710
DC input range DC 6~17V
Working Current 700mA_12V/10Watt
Video input SDI/HDMI/CVBS
UART interface

Transparent TTL serial port
unidirectional data transmission

LAN port 1*UDP port
Date Rate 30Mbits/S_RJ45 & 115200bps_RS232
Channel bandwidth 1/2/4/8MHZ
Operating frequency 300MH~2500MHz,stepping 1MHz
Output Power 27dbm(can customized)
Encryption Dynamic 128 bit AES
FEC 1/2,2/3,3/4,5/6,7/8
Guard interval 1/32,1/16,1/8,1/4
Video encoding H.265
Modulation COFDM,QPSK,QAM16,QAM64
RF interface SMA
Parameter control mode Setting related parameters by control pannel
Dimension 80mm*54mm*23mm
Weight 146g



Receiver



Product introduction

HN-840HD H.265/H.264 IP COFDM Rx HD video receiver, this product has HDMI output interface, CVBS analog audio and video output interface, USB interface, SDI interface, RJ45 interface. The use of non-line-of-sight (NLOS) transmission COFDM multi-carrier demodulation technology, the use of transparent data interface to provide balanced and stable high-speed rate, support UDP (unicast and multicast) protocol. Receive TS stream from the encoder, can set video output resolution according to different needs, highly integrated embedded design. It can help you to complete the design of long-distance wireless links more conveniently and quickly,making it ideal for high-definition high-definition digital broadcasting, security systems, public security, armed police, firefighting and other fields. It is widely used in multi-channel video streaming, unmanned control systems with high standards, intelligent control equipment.


Features

  • H.265 high-efficiency full HD 1080p decoding compression
  • COFDM ultra-narrowband demodulation technology
  • Support H.264/H.265 full-featured image decoding in COFDM mode
  • Supports military-grade non-standard 128-bit AES decryption
  • Transparent network/serial port high rate transmission
  • Support for USB image recording
  • Support CVBS,HDMI,SDI output
  • Support full-band / ultra-narrow band / multi-bandwidth modulation (1MHZ/2MHZ/4MHZ/8MHZ)
  • Digital panel operation and display, easy to use



Technical characteristics



Model HN-840
DC input range DC 6~17V
Current mA_12V
Video output CVBS:SD analog video output
SDI:HD digital video output(option)
HDMI:HD digital video output
Working frequency 300MHz~860MHz/1.1~2.5GHZ,Steeping1MHz
(other frequencies on request)
Channel bandwidth 1/2/4/8MHZ
Reverse audio input 2 channels
Audio output 2 Channels
RJ_45 1*RJ_45
DATA Transparent TTL serial data transmission
TS flow protocol Supports UDP (unicast/multicast) protocols
USB interface Video recording
Decryption method Dynamic 128 bit AES
Video decoding H.264/H.265
Demodulation COFDM
Parameter control method Set related parameters through LCD panel
Dimension 120*65*27mm
