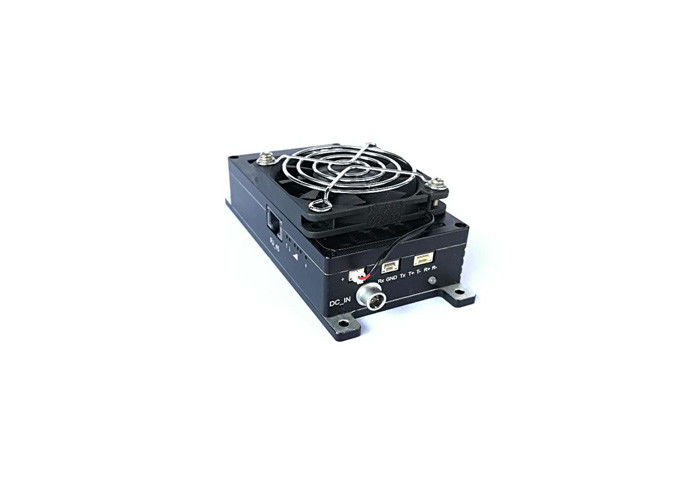

Full Duplex TDD-COFDM Long Range Wireless Video Transmitter For UAV System 2.4GHZ

Full Duplex TDD-COFDM Long Range Wireless Video Transmitter For UAV System 2.4GHZ

  • Full Duplex TDD-COFDM Long Range Wireless Video Transmitter For UAV System 2.4GHZ
Full Duplex TDD-COFDM Long Range Wireless Video Transmitter For UAV System 2.4GHZ
Product Details:
Place of Origin: Shenzhen
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-542Pro
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2~3 working days
Payment Terms: T/T
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
DC Input Range: 7-17V DC Ethernet: 10/100 BaseT、Auto-MDI/X、IEEE 802.3 TCP,UDP,TCP/IP,TFTP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS
Ouput Power: 37dbm Bandwidth: 2MHZ/4MHz/8MHz
Encryption: 128 Bit AES Correction Mechanism: 32 Bit Of CRC,ARQ
Modulation: TDD_COFDM,Time Division Duplex Mode Data Transmission: RS232/RS485/RS422
High Light:

long range hd video transmitter

,

long range wifi transmitter

2.4GHZ Long Range Wireless videoTransceiver full duplex TDD-COFDM UAV data link​







Product Introduction:



HN-542Pro  TDD_COFDM this product is our company released latest mini type pure digital wireless transmission equipment,the use of advanced time division processing technology and leading COFDM modulation technology,providing a complete two-way data transmission channel, high-definition video transmission channel, the perfect realization of real-time,high-speed mobile data, audio and video transmission.







Applications





Compact size, light weight, widely application for UAV system, high speed railway, fire fighting, security, intelligence control and other complex environments.







Product features





● Support for up to 20Mbps data flow, adaptive dynamic stream allocation technology



● Support multiple bandwidth regulation (2M/4M/8M), adaptive modulation and manual modulation mode selection



● Support diversity antenna receiver



● Support 128 bit AES encryption



● Support transparent PTP&PMD network transmission technology



● Support non line of sight (NLOS), high-speed mobile transmission



● Support high standard industrial applications



● Provide standard RS-232 & RS-485 + RJ45 interface



● High definition OLED panel digital display, simple interface easy to operation



Small size, light weight, low power consumption





HN-542Pro Technical parameters





Model HN-542Pro
Power input DC 7~17V



Ethernet

10/100 BaseT,Auto-MDI/X,IEEE 802.3
TCP,UDP,TCP/IP,ARP,ICMP,DHCP,HTTP,SNMP,FT P,DNS
Data input RS-232&RS-485-H/RS-485-F
RJ45
Output frequency 2402MHz-2482MHz,Step 1MHz adjustable
Output power 37dBm/5W
Bandwidth 2.0 MHz /4.0MHz/8.0MHz
Encryption 128 bit AES (can customized 256 bit AES)
Correction mechanism 32 bit of CRC,ARQ
Modulation TDD-COFDM,Time division duplex mode
RF Antenna interface MMCX
Parameter control By adjusting the parameters of OLED control
Dimensions 74m*52mm*20mm
Weight 380g
