COFDM Cctv Wireless Video Transmitter Receiver , Small UAV Video Transmitter And Receiver

China COFDM Cctv Wireless Video Transmitter Receiver , Small UAV Video Transmitter And Receiver supplier

Large Image :  COFDM Cctv Wireless Video Transmitter Receiver , Small UAV Video Transmitter And Receiver

Product Details:

Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-430HD

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2~3 working days
Payment Terms: T/T
Supply Ability: 1000pcs Per month
Contact Now
Detailed Product Description
Demodulation: Cofdm Radio Frequency: 300-860MHz,stepping 1MHz
Video Display: 10.1 HD TFT LCD Pixel Format: 1920X1200
Decoding: MPEG2/H.264 Weight: 1500g

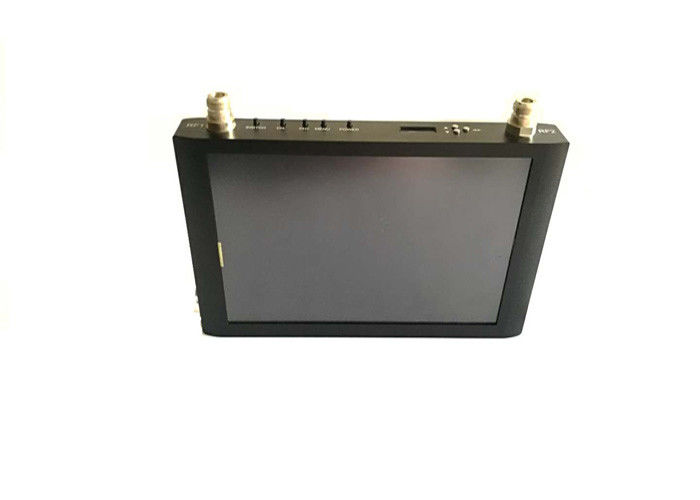

10.1 inch UHF band cofdm video receiver full HD 1080P hand-held dual antenna





Product introduction



HN-430HD 10.1 inch full HD hand-held video Receiver,small size,light weight.The use of advanced multi-carrier diversity reception technology to support high-speed mobile and non-line sight reception.Use full HD 1920X1200 10.1 inch 16:10 color TFT-LCD to display,provide simple operation and perfect image,Which are widely used in security, fire fighting, radio and television,emergency communications, unmanned aerial vehicles and other fields.







Product features



●Support COFDM mode H.264/MPEG2 full-featured video decoding

●Provide 3.5mm standard audio video output interface

●Support dual antenna multi-carrier diversity reception

●10.1 inch High-definition 1920X1200 display screen

●Support HD1080P, 720P, 576,480

●Battery integrated design, small size, light weight, high reliability





Technical characteristics





Model HN-430HD
Voltage DC12V

Built-in lithium battery,

It can continuously work over 4 hours

Receive sensitivity -104dBm/2MHz
AV output Audio:3.5mm port,Analog audio output
CVBS:3.5mm port,Analog video output
Video display 10.1 HD TFT LCD
Pixel format 1920X1200
Radio Frequency 300-860MHz,stepping 1MHz
Bandwidth 2/2.5/4/8MHz
Demodulation COFDM
Decoding MPEG2/H.264
Decryption Dynamic 128 bit AES decryption
Parameter control mode Through control panel to set the relevant parameters
RF signal input port N-type(50Ω)high performance dual channel diversity reception
Dimensions 158mm*262mm*33mm
Weight 1500g
