H.265 cofdm module 4K Video quality HDMI SDI CVBS UAV video transmitter module

China H.265 cofdm module 4K Video quality HDMI SDI CVBS UAV video transmitter module supplier

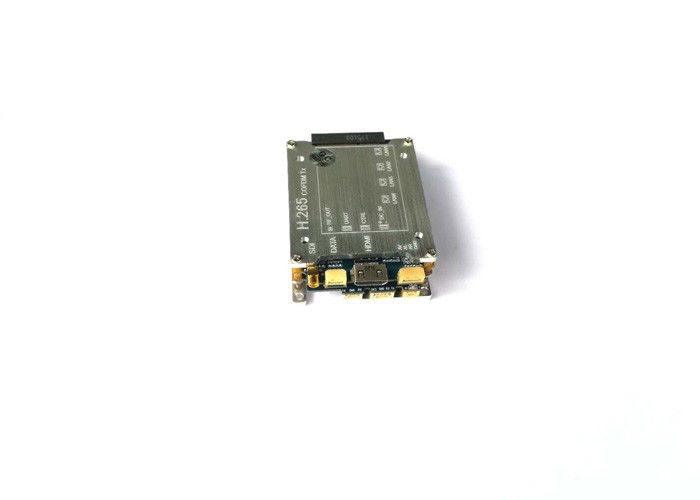

Large Image :  H.265 cofdm module 4K Video quality HDMI SDI CVBS UAV video transmitter module

Product Details:

Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: SK-710

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Professional carton box package
Delivery Time: 1~2 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
DC Input Range: DC 6~17V Video Input: SDI/HDMI/CVBS
Date Rate: 30Mbits/S_RJ45 & 115200bps_RS232 Operating Frequency: 300MH~2500MHz,stepping 1MHz
Video Encoding: H.265 Modulation: COFDM,QPSK,QAM16,QAM64

H.265 cofdm module 4K Video quality HDMI SDI CVBS UAV video transmitter module





SK-710 Cofdm video transmitter module





Product introduction



SK-710 H.265 HD COFDM is the latest COFDM transmission module that supports multi-channel IP input, supports full-featured interface (HDMI/SDI/CVBS), and supports NLOS transmission.The use of the highly efficient and innovative H.265 compression coding method has resulted in fruitful improvement and improvement in improving coding efficiency, reducing coding delay, algorithm optimization, anti-error rate, and further improving image quality. It can achieve the best image compression at the lowest code rate. The effect can support the input of multiple IP video streams of UDP specifications at the same time. It is very simple to realize multi-channel video transmission at the same time through a transmitter using a single frequency to transmission.



This module uses a highly integrated embedded design, ultra-linear digital predistortion RF design, high-definition coding, digital modulation, full-band RF output in one, supports narrowband (1MHz), low latency, transparent data Long-distance transmission applications.



It can help you to complete the design of long-distance wireless links more conveniently and quickly, provide high-definition digital broadcasting, security systems, public security, armed police, fire-figting and other fields of applications, widely used in multi-channel video streaming, high standard unmanned control system, intelligent control equipment.







Product Features





  • H.265 high-efficiency full HD 1080p compression encoding
  • Full-featured interface, HDMI/SDI/CVBS
  • COFDM ultra-narrow band modulation technology
  • Supports 4-way UDP unidirectional network video stream for simultaneous transmission
  • Support full-band / ultra-narrow band / multi-bandwidth modulation (1M/2M/4M/8M)
  • Support transparent network/serial port high rate transmission
  • Adaptive multi-video format input
  • Configuration menu real-time preset
  • Supports military-grade non-standard 128-bit dynamic AES encryption
  • Highly integrated modular combination design
  • Small size, light weight, easy to carry, using heat sink aluminum chassis





Technical specifications





Model SK-710
DC input range DC 6~17V
Working Current 700mA_12V/8.5W
Video input SDI/HDMI/CVBS
UART interface

Transparent TTL serial port

unidirectional data transmission

LAN port 4*UDP port
Date Rate 30Mbits/S_RJ45 & 115200bps_RS232
Channel bandwidth 1/2/4/8M
Operating frequency 300MH~2500MHz,stepping 1MHz
Encryption Dynamic 128 bit AES
FEC 1/2,2/3,3/4,5/6,7/8
Guard interval 1/32,1/16,1/8,1/4
video encoding H.265
Modulation COFDM,QPSK,QAM16,QAM64
RF interface IPX
parameter control mode Setting related parameters by control pannel
Dimension 78mm*48mm*20mm
Weight 115g







SK-840 Cofdm video receiver module





Product introduction





SK-840 HD H.265/H.264 IP COFDM Rx HD decoding module, this product has HDMI output interface, CVBS analog audio and video output interface, USB interface, SDI interface, RJ45 interface. The use of non-line-of-sight (NLOS) transmission COFDM multi-carrier demodulation technology, the use of transparent data interface to provide balanced and stable high-speed rate, support HTTP, RTSP, RTMP, UDP (unicast and multicast) protocol. Receive TS stream from the encoder, can set video output resolution according to different needs, highly integrated embedded design. It can help you to complete the design of long-distance wireless links more conveniently and quickly. It can be applied to high-definition digital broadcasting, security systems, public security, armed police, firefighting and other fields. It is widely used in multi-channel video streaming, unmanned control systems with high standards, intelligent control equipment.







Features



  • H.265 high-efficiency full HD 1080p decoding compression
  • COFDM ultra-narrowband demodulation technology
  • Support H.264/H.265 full-featured image decoding in COFDM mode
  • Supports military-grade non-standard 128-bit AES decryption
  • Transparent network/serial port high rate transmission
  • Support for USB image recording
  • Support CVBS,HDMI,SDI output
  • Support full-band / ultra-narrow band / multi-bandwidth modulation (1M/2M/4M/8/)
  • Digital panel operation and display, easy to use





Technical characteristics





Model SK-840
DC input range DC 6~17V
Current mA_12V
Video output CVBS:SD analog video output
SDI:HD digital video output
HDMI:HD digital video output
Working frequency 300MHz~860MHz,Steeping1MHz
(other frequencies on request)
Channel bandwidth 1/2/4/8M
Reverse audio input 2 channels
Audio output 2 Channels
RJ_45 1*RJ_45
DATA Transparent TTL serial data transmission
TS flow protocol Supports HTTP/RTSP/RTMP/UDP
(unicast/multicast) protocols
USB interface Video recording
Decryption method Dynamic 128 bit AES
Video decoding H.264/H.265
Demodulation COFDM
Parameter control method Set related parameters through LCD panel
Dimension 120*65*27mm
