Low Latency Analog Video COFDM Module With Dynamically Adjustable Encryption Key

China Low Latency Analog Video COFDM Module With Dynamically Adjustable Encryption Key supplier

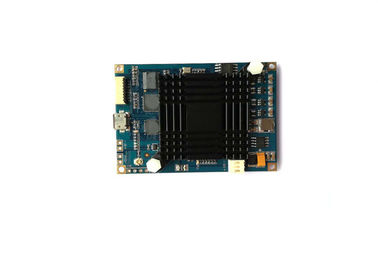

Large Image :  Low Latency Analog Video COFDM Module With Dynamically Adjustable Encryption Key

Product Details:

Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: SK-236&SK-620

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Professional carton box package
Delivery Time: 1~2 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Current: 350mA_12V RF Interface: IPEX
Modulation: Cofdm Dimensions: 70mm*50mm
Audio Channel: 2 Channel Radio Frequency: 300~2400MHz,Stepping In 1MHz

Mini size cofdm module low delay time wireless video transmitter PCB board





Product description:





SK-236 COFDM wireless image transmission and transmission module, which adopts advanced composite NTSC/PAL video preprocessing technology and efficient video coding algorithm to improve coding efficiency, reduce coding delay, algorithm optimization, anti-error rate and further improve image quality. The results have been improved and improved to achieve the best image compression at the lowest bit rate.







Product features:



  • Support high definition analog video NTSC/PAL input
  • COFDM modulation technology, MPEG-2 image compression processing
  • Highly integrated modular design, small size
  • Support non-line of sight (NLOS) high speed mobile transmission





Technical characteristics





Model SK-236
Voltage DC 6~15V
Current 350mA_12V
Video input CVBS:480i/576i
Audio Channel 2 Channel
Channel Bandwidth 2.0/4.0/8.0MHz
Radio Frequency 300~2400MHz,Stepping in 1MHz
Output power 0dBm
RF interface IPEX
Video encoding H.264
Modulation COFDM
Constellation QPSK
Parameter control mode Through OLED display panel to setting the relevant parameters
Dimensions 70mm*50mm
Bolt hole spacing 66mm*46mm







SK-620  RX  module





Model SK-620
DC input range DC 6~17V
Working current 420mA_12V
Receive sensitivity -104dBm/2MHz
Video output CVBS:Support D1 SD resolution
  HDMI:Support HD1080P,720P,576,480
Channel bandwidth 2/2.5/4/8MHz
Radio Frequency 300~860MHz,Stepping 1MHz (other frequencies on request)
RF interface SMA
Decryption AES 128(dynamically adjustable encryption key)
Decoding MPEG2/H.264
Demodulation COFDM
Parameter control mode Through LCD display panel to set the relevant parameters
Dimensions 120mm*65mm*10mm
Bolt hole spacing 115mm*53mm
