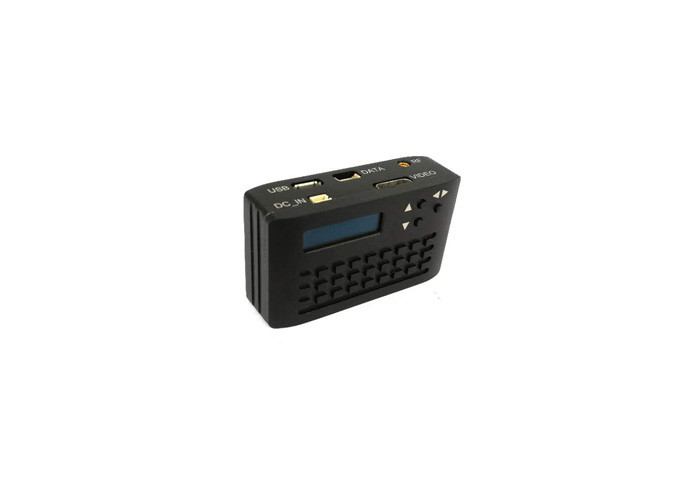

H.265 Smallest COFDM HD Wireless Transmitter Multi Carrier Modulation Technology 58g

H.265 Smallest COFDM HD Wireless Transmitter Multi Carrier Modulation Technology 58g

  • H.265 Smallest COFDM HD Wireless Transmitter Multi Carrier Modulation Technology 58g
H.265 Smallest COFDM HD Wireless Transmitter Multi Carrier Modulation Technology 58g
Product Details:
Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-711
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2~3 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Video Encoding: H.265 Video Input: HDMI
Radio Frequency: 300MHz - 1500MHz,stepping 1MHz Output Power: 24dBm/200mW(can Customized)
RF Interface: MMCX Encryption: Dynamic 128 Bit AES
Modulation: Cofdm Constellation: QPSK,QAM16,QAM64
Dimension: 60mm*36mm*19mm Weight: 58g
High Light:

wireless hd video transmitter

,

hd sdi wireless transmitter

H.265 cofdm HD wireless transmitter the smallest wireless video transmitter 58g



Product introduction



HN-711 H.265 COFDM 1080P Micro high definition wireless video transmission equipment,Using the support of non line of sight (NLOS) transmission and COFDM multi-carrier modulation technology. Using the latest H.265 compression coding method, to improve the coding efficiency and reduce the coding delay, optimization algorithm,anti error rate and further improve the image quality,at the lowest rate to achieve the best image compression.



highly integrated embedded design,super linear digital predistortion (Digital Predistortion) RF design, setting network, modulation and demodulation, full frequency RF output in one. It can help you to complete the design of long distance wireless link more conveniently and quickly, and provide high definition digital broadcasting, security system, public security, armed police, fire-fighting and other fields.

It is widely used in multi-channel video stream transmission, high standard unmanned control system and intelligent control equipment.





Product features

  • H.265 high efficient full high definition 1080P coding compression
  • COFDM ultra narrow band modulation technology
  • Supporting non sight distance (NLOS), high speed mobile transmission
  • Low latency and low power consumption
  • Transparent serial port high rate transmission
  • Military level non standard 128 bit dynamic AES encryption
  • Support full band / ultra narrow band / multi bandwidth modulation (1M/2M/4M/8M)
  • OLED high definition digital display panel, simple interface and easy to operation.



Application



It is suitable for UAV aerial photography, concealed detection, image monitoring and real-time transmission wireless images.





Technical characteristics



Model HN-711
DC input range DC 6V - 17V
Working current 550mA_12V/6.6W
Video input Mini HDMI:1080P/720P
Bandwidth 1/2/4/8MHz
Radio Frequency

300MHz - 1500MHz,stepping 1MHz

(other frequencies on request )

Output Power 24dBm/200mW(can customized)
RF interface MMCX
Encryption Dynamic 128 bit AES
DATA Transparent TTL serial data transmission
FEC 1/2,2/3,3/4,5/6,7/8
Guard Interval 1/32,1/16,1/8,1/4
Carries 2K
Video encoding H.265
Modulation COFDM
Constellation QPSK,QAM16,QAM64
Parameter control mode

Through OLED display panel to

set the relevant parameters

Dimensions 60mm*36mm*19mm
Weight 58g
