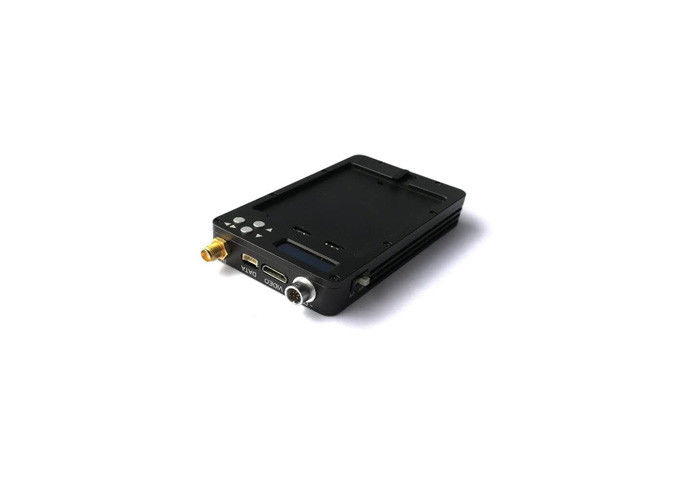

NLOS Portable Mini COFDM Transmitter With High Capacity Lithium Battery Powered

NLOS Portable Mini COFDM Transmitter With High Capacity Lithium Battery Powered

  • NLOS Portable Mini COFDM Transmitter With High Capacity Lithium Battery Powered
  • NLOS Portable Mini COFDM Transmitter With High Capacity Lithium Battery Powered
NLOS Portable Mini COFDM Transmitter With High Capacity Lithium Battery Powered
Product Details:
Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-512Pro
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: professional carton box package
Delivery Time: 2~3 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Encryption: AES 128 Video Input: HDMI+CVBS
Constellation: QPSK,16QAM,64QAM Bandwidth: 2/4/8MHz
Audio Input: Lotus Interface RF Interface: SMA
FEC: 1/2,2/3,3/4,5/6,7/8 Guard Interval: 1/32,1/16,1/8,1/4
Modulation: Cofdm Dimensions: 100mm*59mm*16mm
High Light:

mini wireless transmitter

,

miniature video transmitter





NLOS portable Mini cofdm transmitter mini size HDMI diversity reception





Product description:



HN-512PRO H.264 Mini HD-HDMI/ CVBS COFDM wireless video transmitter,Using the core of 4th generation mobile communication COFDM multi carrier modulation technique and efficient H.264 compression encoding method,Integrated high brightness and low power consumption OLED display control interface,integrated molding design,setting the digital modulation, digital audio & video compression in one,highly integrated HD mobile, non line of sight digital image transmission equipment, compact size, light weight.It can transmit full HD 1080P video and audio in a block building environment or transmit high quality full HD 1080P video and audio in high-speed mobile environment.This model is divided into HDMI+CVBS and CVBS versions.





Product features:



● Support high definition analog video input NTSC/PAL

● Support HD mini HDMI 1080P, 720P video input, provide good compatibility

● Menus can be changed at any time

● Support military level non-standard 128 bit dynamic AES encryption

● Support non line of sight (NLOS), high-speed mobile transmission

● High performance, high capacity lithium battery powered (battery can be replaced)

● Small size, light weight, easy to carry, using air-cooling fin aluminum shell

●OLED display control interface with high brightness and low power consumption





Technical characteristics





Model HN-512PRO
Voltage DC 6~12V(reverse polarity protected)
External lithium battery DC7.2V/1400mA(Replaceable)
Current 600mA-12V/0.8W(CVBS)
700mA-12V/0.8W(HDMI/CVBS)
Video input(optional) CVBS
CVBS+Mini HDMI
Audio Input Lotus interface
Audio Coding ISO/IEC13818-3(MPEG-1)
Bandwidth 2/4/8MHz
TX Frequency 300MH~860MHz stepping in 1MHz(other frequencies on request)
RF Output Power 26dBm/400mW(can be customized)
RF interface SMA
Encryption dynamic 128 bit AES encryption
FEC 1/2,2/3,3/4,5/6,7/8
Guard Interval 1/32,1/16,1/8,1/4
Carriers 2K
Encoding H.264,MPEG-2
Modulation COFDM
Constellation QPSK,QAM16,QAM64
Parameter control mode Through OLED display panel to setting the relevant parameters
Dimensions 100mm*59mm*16mm
Weight 140g
Temperature -20℃~70℃
HN-512PRO accessories

7.2V/1400m Lithium battery and charger

5-pin aircraft head wiring,

Compatible receiver

SK-320 receiver module /HN-320 receiver

SK-620 receiver module

HN-430HD hand-held receiver





Application:





This product is widely used in high quality and high standard requirements of aerial photography,News, sports events, hidden investigation,video surveillance,real-time wireless video transmission and other fields.









HN-120R cofdm video receiver





Product description:



HN-120R Vehicle-mounted HD H.264/MPEG2 COFDM wireless video transmission receiver,Using standard 1U frame to design,with simple and efficient control interface, which can output a multi-channel video including high definition and standard definition video at the same time.Widely used in security, fire fighting, radio and television, emergency communications and other applications.Receiving the wireless signal in the high speed movement or NLOS(non line of sight) condition to realize the remote video transmission and monitoring.









Features:



●Support H.264 HD1080P/SD resolution
●Support non line of sight (NLOS) transmission in high-speed movement
●Digital operation panel and display, easy to use
●Standard 1U case,small volume,good extension
●Aluminum alloy design, dustproof,moistureproof,anti vibration,anti impact









Technical parameters



Model HN-120R
Voltage AC220V
Power consumption 20W
Receiving Sensitivity -105dBm/2MHz
Video output BNC port,SD Analog video output
HDMI:HD digital video output
Bandwidth 2/2.5/4/8MHz
Radio Frequency 300MHz~900MHZ,Stepping 1MHz (other frequencies on request)
Decryption AES
Demodulation COFDM
Parameter adjustment Through the control panel to set the relevant parameters
Audio output connection BNC,Analog stereo output
RF signal input port N(50Ω)High performance dual channel diversity reception
Working temperature -20℃-70℃
Operating humidity 80%
Dimensions 480mm*220mm*44mm(Standard 1U case)
