H.264 industrial-grade cofdm module HD 1080P HDMI wireless video transmitter

China H.264 industrial-grade cofdm module HD 1080P HDMI wireless video transmitter supplier
H.264 industrial-grade cofdm module HD 1080P HDMI wireless video transmitter supplier H.264 industrial-grade cofdm module HD 1080P HDMI wireless video transmitter supplier H.264 industrial-grade cofdm module HD 1080P HDMI wireless video transmitter supplier H.264 industrial-grade cofdm module HD 1080P HDMI wireless video transmitter supplier

Large Image :  H.264 industrial-grade cofdm module HD 1080P HDMI wireless video transmitter

Product Details:

Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: SK-350 & SK-320

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Professional carton box package
Delivery Time: 2~3 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Encryption: Dynamic 128 Bit AES Video Input: HDMI+CVBS/SDI+CVBS
RF Interface: SMA Video Encoding: H.264
Radio Frequency: 300~860MHZ Bandwidth: 2/2.5/4/8MHz
Modulation: Cofdm Audio Coding: ISO/IEC13818-3

H.264 industrial-grade cofdm module HD 1080P HDMI wireless video transmitter



Product description:



SK-350 H.264 COFDM wireless video transmitter module,compact size,low power consumption.Using high efficient H.264 compression encoding and core technology of the fourth generation mobile communication COFDM multicarrier modulation technique, highly integrated embedded design, single-chip digital modulation processing technology, ultra-linear digital pre-distortion (Digital Predistortion) RF design, setting digital collection, encoding, modulation, full-band RF output integrated together.SK-350 fine design can help you more quickly and easily complete COFDM modulation standard for HD wireless video transmission equipment, available to high-definition digital broadcasting, security systems, public security, armed police, fire fighting and other fields applications.This model is divided into HDMI+CVBS and SDI+CVBS versions.



Features



●Support COFDM model H.264/MPEG2 full-featured video decoding

●Support military level non-standard 128 bit AES decryption

●Support NLOS,High-speed mobile transmission

●Digital operation panel and display,easy to use

●Support dual antenna multi-carrier diversity reception





TX Technical parameters



Model SK-350_HDMI,SK-350_SDI
Voltage DC 12V
Current CVBS:450mA
SDI:470mA
HDMI:540mA
Video input CVBS:480i/576i
SDI:1080_50p/60p
HDMI:1080_25p/30p/50p/60p/50i/60i
Audio channel 2 Channel
Bandwidth 2/2.5/4/8MHz
Audio coding ISO/IEC13818-3(MPEG-1)
Radio frequency 300~860MHz Stepping 1MHz(support 138MHz~4.2GHz output) Other frequency on request
Output power -30dBm~0dBm(Stepping 1dBm,adjustable)
RF interface SMA
Encryption dynamic 128 bit AES
FEC 1/2,2/3,3/4,5/6,7/8
Guard interval 1/32,1/16,1/8,1/4
Modulation COFDM 2K
Video encoding H.264/MPEG2
Parameter control method Through the LCD control panel to set the relevant parameters
Dimensions 120mm*65mm





RX Technical parameters



Model SK-320
Voltage DC 6~15V
Current 330mA_12V
Power consumption 4W
Level of sensitivity -104dBm/2MHz
Video output CVBS:Analog video output
HDMI:HD digital video output
Bandwidth 2/2.5/4/8MHz
Radio frequency 300~860MHz,stepping 1MHz
Decryption 128bit AES
Decoding MPEG2/H.264
Demodulation COFDM
RF input SMA,high performance dual channel diversity reception
Parameter control mode Through the LCD display panel to set the related parameters
Module size 120mm*65mm*10mm
Bolt hole spacing 115mm*53mm

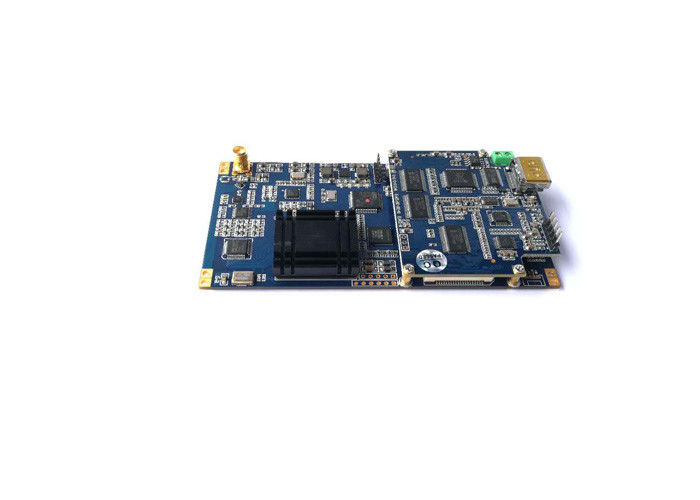

SK-350 MPEG2/H.264 Transmitter module



H.264 industrial-grade cofdm module HD 1080P HDMI wireless video transmitter

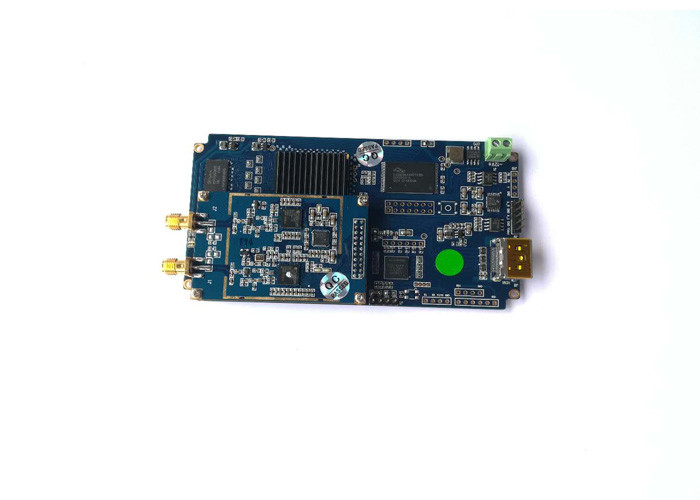

SK-320 MPEG2/H.264  Receiver module









H.264 industrial-grade cofdm module HD 1080P HDMI wireless video transmitter
