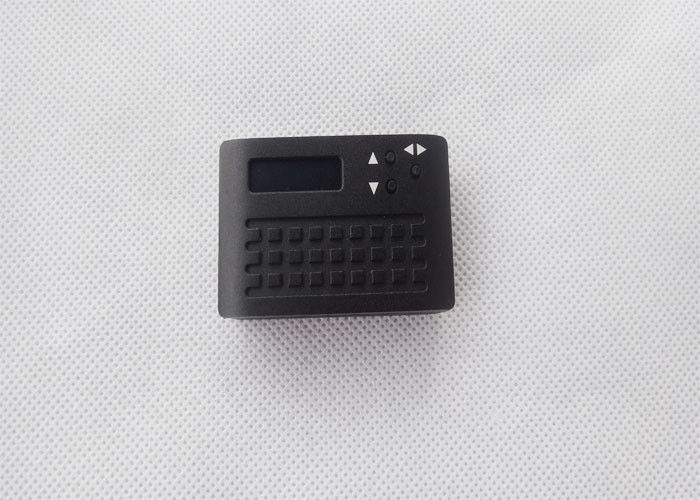

UHF Band COFDM HD Wireless Transmitter 1080P HDMI Mini Size UAV

UHF Band COFDM HD Wireless Transmitter 1080P HDMI Mini Size UAV

  • UHF Band COFDM HD Wireless Transmitter 1080P HDMI Mini Size UAV
UHF Band COFDM HD Wireless Transmitter 1080P HDMI Mini Size UAV
Product Details:
Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-512Pro
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: professional carton box package
Delivery Time: 2~3 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Encryption: AES 128 Video Input: CVBS Or HDMI+CVBS
Modulation: Cofdm 2K Constellation: QPSK,16QAM,64QAM
Bandwidth: 2/4/8MHz Audio Coding: ISO/IEC13818-3(MPEG-1)
Name: HD Wireless Transmitter
High Light:

UHF Band COFDM HD Wireless Transmitter

,

mini size COFDM HD Wireless Transmitter

,

UAV HD Wireless Transmitter

UHF Band COFDM HD Wireless Transmitter 1080P HDMI Mini Size UAV







Application:



This product is widely used in high quality and high standard requirements of aerial photography,News, sports events, hidden investigation,video surveillance,real-time wireless video transmission and other fields.





Product features:



● Support high definition analog video input NTSC/PAL

● Support HD mini HDMI 1080P, 720P video input, provide good compatibility

● Menus can be changed at any time

● Support military level non-standard 128 bit dynamic AES encryption

● Support non line of sight (NLOS), high-speed mobile transmission

● High performance, high capacity lithium battery powered (battery can be replaced)

● Small size, light weight, easy to carry, using air-cooling fin aluminum shell

●OLED display control interface with high brightness and low power consumption





Technical characteristics





Model HN-512PRO
Voltage DC 6~12V(reverse polarity protected)
External lithium battery DC7.2V/1400mA(Replaceable)
Current 600mA-12V/0.8W(CVBS)
700mA-12V/0.8W(HDMI/CVBS)
Video input(optional) CVBS
CVBS+Mini HDMI
Audio Input Lotus interface
Audio Coding ISO/IEC13818-3(MPEG-1)
Bandwidth 2/4/8MHz
TX Frequency 300MH~860MHz stepping in 1MHz(other frequencies on request)
RF Output Power 26dBm/400mW(can be customized)
RF interface SMA
Encryption dynamic 128 bit AES encryption
FEC 1/2,2/3,3/4,5/6,7/8
Guard Interval 1/32,1/16,1/8,1/4
Carriers 2K
Encoding H.264,MPEG-2
Modulation COFDM
Constellation QPSK,QAM16,QAM64
Parameter control mode Through OLED display panel to setting the relevant parameters
Dimensions 100mm*59mm*16mm
Weight 140g
Temperature -20℃~70℃
HN-512PRO accessories

7.2V/1400m Lithium battery and charger

5-pin aircraft head wiring,

Compatible receiver

SK-320 receiver module /HN-320 receiver

SK-620 receiver module

HN-430HD hand-held receiver





Features

● Support COFDM model H.264/MPEG2 full-featured video decoding



● Support NLOS,High-speed movement transmission



● Digital operation panel and display,easy to use



● Support dual antenna multi-carrier diversity reception
