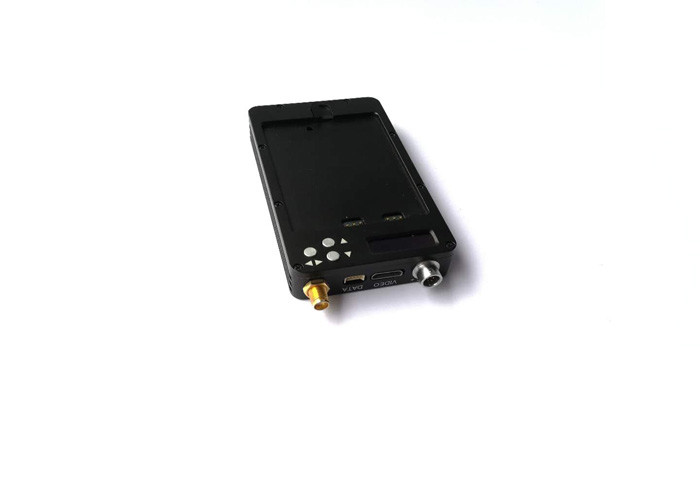

UHF Band Cofdm HD Video Transmitter / Miniature UAV Video Transmitter

UHF Band Cofdm HD Video Transmitter / Miniature UAV Video Transmitter

  • UHF Band Cofdm HD Video Transmitter / Miniature UAV Video Transmitter
UHF Band Cofdm HD Video Transmitter / Miniature UAV Video Transmitter
Product Details:
Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-512Pro
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: professional carton box package
Delivery Time: 2~3 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Encryption: AES 128 Video Input: CVBS Or HDMI+CVBS
Modulation: Cofdm 2K Constellation: QPSK,16QAM,64QAM
Bandwidth: 2/4/8MHz Audio Input: Lotus Interface
Audio Coding: ISO/IEC13818-3(MPEG-1) Output Power: Can Customized
High Light:

wireless hd video transmitter


full hd wireless transmitter

HD 1080P HDMI Cofdm video transmitter UHF band mini size UAV video transmitter



Product description:


HN-512PRO H.264 Mini HD-HDMI/ CVBS COFDM wireless video transmitter,Using the core of 4th generation mobile communication COFDM multi carrier modulation technique and efficient H.264 compression encoding method,Integrated high brightness and low power consumption OLED display control interface,integrated molding design,setting the digital modulation, digital audio & video compression in one,highly integrated HD mobile, non line of sight digital image transmission equipment, compact size, light weight.It can transmit full HD 1080P video and audio in a block building environment or transmit high quality full HD 1080P video and audio in high-speed mobile environment.This model is divided into HDMI+CVBS and CVBS versions.





This product is widely used in high quality and high standard requirements of aerial photography,News, sports events, hidden investigation,video surveillance,real-time wireless video transmission and other fields.



Product features:


● Support high definition analog video input NTSC/PAL

● Support HD mini HDMI 1080P, 720P video input, provide good compatibility

● Menus can be changed at any time

● Support military level non-standard 128 bit dynamic AES encryption

● Support non line of sight (NLOS), high-speed mobile transmission

● High performance, high capacity lithium battery powered (battery can be replaced)

● Small size, light weight, easy to carry, using air-cooling fin aluminum shell

●OLED display control interface with high brightness and low power consumption



Technical characteristics



Model HN-512PRO
Voltage DC 6~12V(reverse polarity protected)
External lithium battery DC7.2V/1400mA(Replaceable)
Current 600mA-12V/0.8W(CVBS)
Video input(optional) CVBS
Audio Input Lotus interface
Audio Coding ISO/IEC13818-3(MPEG-1)
Bandwidth 2/4/8MHz
TX Frequency 300MH~860MHz stepping in 1MHz(other frequencies on request)
RF Output Power 26dBm/400mW(can be customized)
RF interface SMA
Encryption dynamic 128 bit AES encryption
FEC 1/2,2/3,3/4,5/6,7/8
Guard Interval 1/32,1/16,1/8,1/4
Carriers 2K
Encoding H.264,MPEG-2
Modulation COFDM
Constellation QPSK,QAM16,QAM64
Parameter control mode Through OLED display panel to setting the relevant parameters
Dimensions 100mm*59mm*16mm
Weight 140g
Temperature -20℃~70℃
HN-512PRO accessories

7.2V/1400m Lithium battery and charger

5-pin aircraft head wiring,

Compatible receiver

SK-320 receiver module /HN-320 receiver

SK-620 receiver module

HN-430HD hand-held receiver








HN-320 cofdm video receiver


Product introduction

HN-320 HD H.264/MPEG2 COFDM Wireless video transmission Receiver. Using advanced multi-carrier diversity reception technology.Support high-speed movement and non-line of sight reception.Simple and efficient to use control interface.It’s can simultaneously output multiple video including HD and SD video.Widely used in security, fire fighting, radio and television, emergency communications and ect.Receiving wireless signals,realize the remote video transmission and monitoring under the condition of mobile non line-of-sight.






● Support COFDM model H.264/MPEG2 full-featured video decoding


● Support NLOS,High-speed movement transmission


● Digital operation panel and display,easy to use


● Support dual antenna multi-carrier diversity reception




Technical parameters




Model HN-320
Voltage DC 6~15V
Current 350mA_12V
Receive sensitivity -102dBm/2MHz
Video output CVBS:Support D1 SD resolution
HDMI:Support HD1080,720P,576,480
Bandwidth 2/2.5/4/8MHz
Radio frequency 300MHZ—860MHz,stepping 1MHz
Input SMA
Decoding MPEG2/H.264
Demodulation COFDM

Parameter control



Through the LCD display panel to set the


related parameters

Dimension 125mm*73mm*26mm
