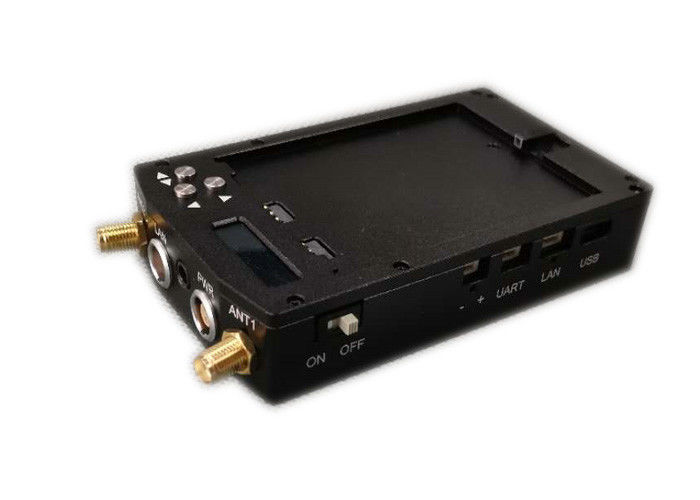

frequency hopping UAV data link push to talk IP mesh radio self-forming mesh network

frequency hopping UAV data link push to talk IP mesh radio self-forming mesh network

  • frequency hopping UAV data link push to talk IP mesh radio self-forming mesh network
frequency hopping UAV data link push to talk IP mesh radio self-forming mesh network
Product Details:
Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-770
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Professional carton box package
Delivery Time: 1~2 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Channel Bandwidth: 1.4MHz/3MHz/5MHz/10MHz/20MHz Encryption: 128bit AES
Working Voltage: DC 6~17V LAN Port: 1*UDP Port
Audio: Push To Talk Output Power: 27dBm
Weight: 135g Dimension: 100mm*60mm*20mm

frequency hopping UAV data link push to talk IP mesh radio self-forming mesh network





Product Features

  • Non-line-of-sight coverage
  • Provide a self-healing, self-forming mesh network
  • Frequency hopping
  • Push to talk,two way audio
  • Support transparent network/serial port high rate transmission
  • Configuration menu real-time preset
  • Highly integrated modular combination design
  • Compact size, light weight, easy to carry, using heat sink aluminum chassis.







Specifications



Model HN-770
DC input range DC 6~17V
Working Current

1.2A_12V/15Watt

1.35A_12V/16watt@0.5watt

UART interface

Transparent TTL serial port

unidirectional data transmission

LAN port 1*UDP port
Date Rate 30Mbits/S_RJ45 & 115200bps_RS232
PTT(audio) Push to talk
Channel bandwidth 1.4MHz/3MHz/5MHz/10MHz/20MHz
Operating frequency

2401.5~2481.5MHz

1427.9~1447.9MHz

806~826MHz

RX sensitivity

2.4GHZ(1Mbps)

20MHz -99dBm

10MHz -102dBm

5MHz -104dBm

3MHz -106dBm

1.4GHZ(1Mbps)

10MHz -103dBm

5MHz -106dBm

3MHz -108dBm

800MHz(1Mbps)

10MHz -103dBm

5MHz -106dBm

3MHz -108dBm

Output Power

25dBm±2

( 1.4GHz @25dBm,800MHz@27dBm)

Encryption Dynamic 128 bit AES
RF interface SMA
Parameter control mode Setting related parameters by control pannel
Dimension 100mm*60mm*20mm
Weight 135g
