| Place of Origin: | China |
| Brand Name: | Huanuo |
| Certification: | CE/FCC/ROHS |
| Model Number: | HN-770 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Professional carton box package |
| Delivery Time: | 1~2 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 pieces per month |
| Channel Bandwidth: | 1.4MHz/3MHz/5MHz/10MHz/20MHz | Encryption: | 128bit AES |
|---|---|---|---|
| Working Voltage: | DC 6~17V | LAN Port: | 1*UDP Port |
| Audio: | Push To Talk | Output Power: | 27dBm |
| Weight: | 135g | Dimension: | 100mm*60mm*20mm |

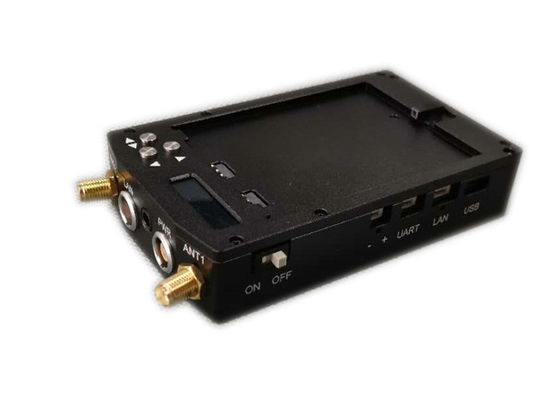

| High Light: | Self Forming UAV Data Link,1.4MHz UAV Data Link,1.4MHz uav communication data link |
||
frequency hopping UAV data link push to talk IP mesh radio self-forming mesh network
Product Features
Specifications
| Model | HN-770 |
| DC input range | DC 6~17V |
| Working Current |
1.2A_12V/15Watt |
| UART interface |
Transparent TTL serial port unidirectional data transmission |
| LAN port | 1*UDP port |
| Date Rate | 30Mbits/S_RJ45 & 115200bps_RS232 |
| PTT(audio) | Push to talk |
| Channel bandwidth | 1.4MHz/3MHz/5MHz/10MHz/20MHz |
| Operating frequency |
2401.5~2481.5MHz 1427.9~1447.9MHz 806~826MHz |
| RX sensitivity |
2.4GHZ(1Mbps) 20MHz -99dBm 10MHz -102dBm 5MHz -104dBm 3MHz -106dBm |
|
1.4GHZ(1Mbps) 10MHz -103dBm 5MHz -106dBm 3MHz -108dBm |
|
|
800MHz(1Mbps) 10MHz -103dBm 5MHz -106dBm 3MHz -108dBm |
|
| Output Power |
25dBm±2 ( 1.4GHz @25dBm,800MHz@27dBm) |
| Encryption | Dynamic 128 bit AES |
| RF interface | SMA |
| Parameter control mode | Setting related parameters by control pannel |
| Dimension | 100mm*60mm*20mm |
| Weight | 135g |
