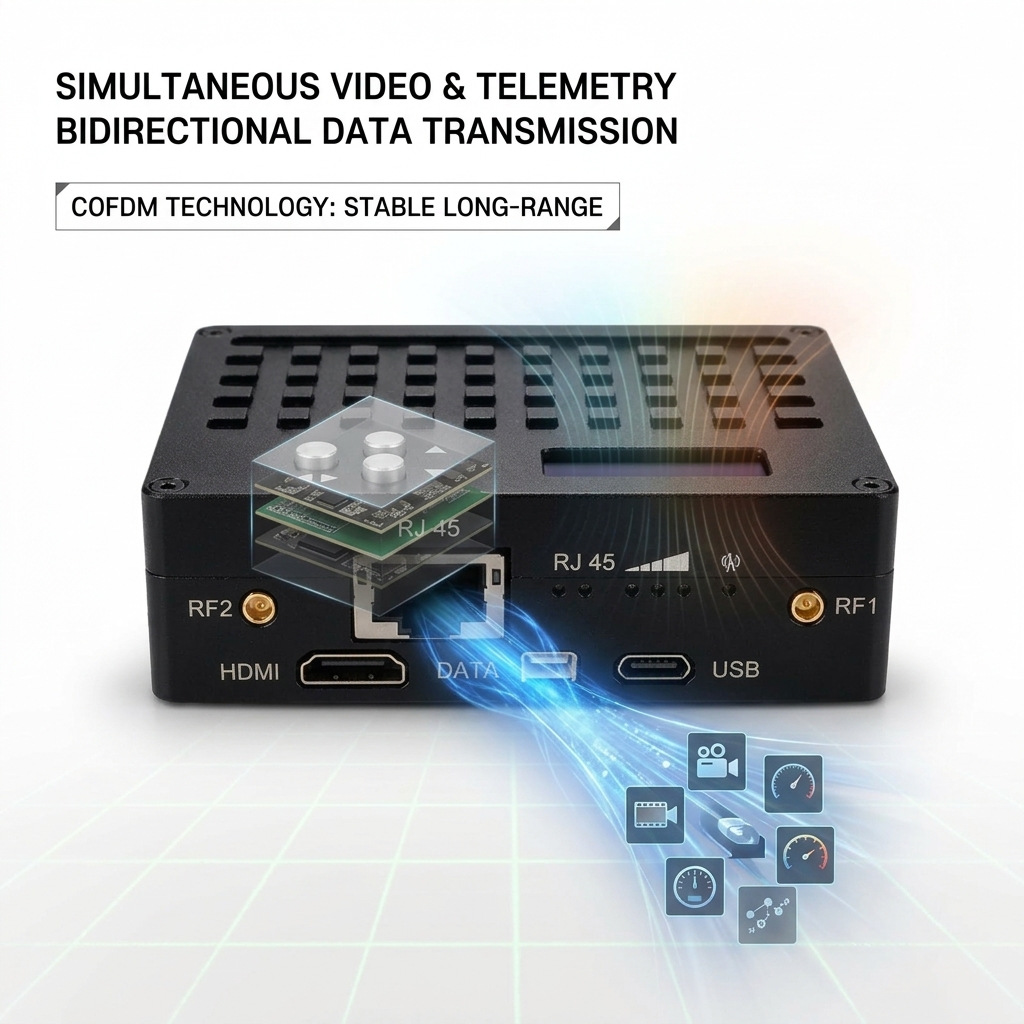

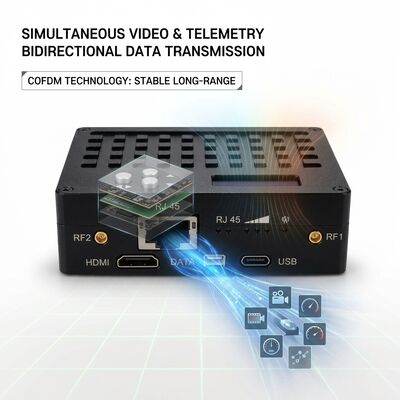

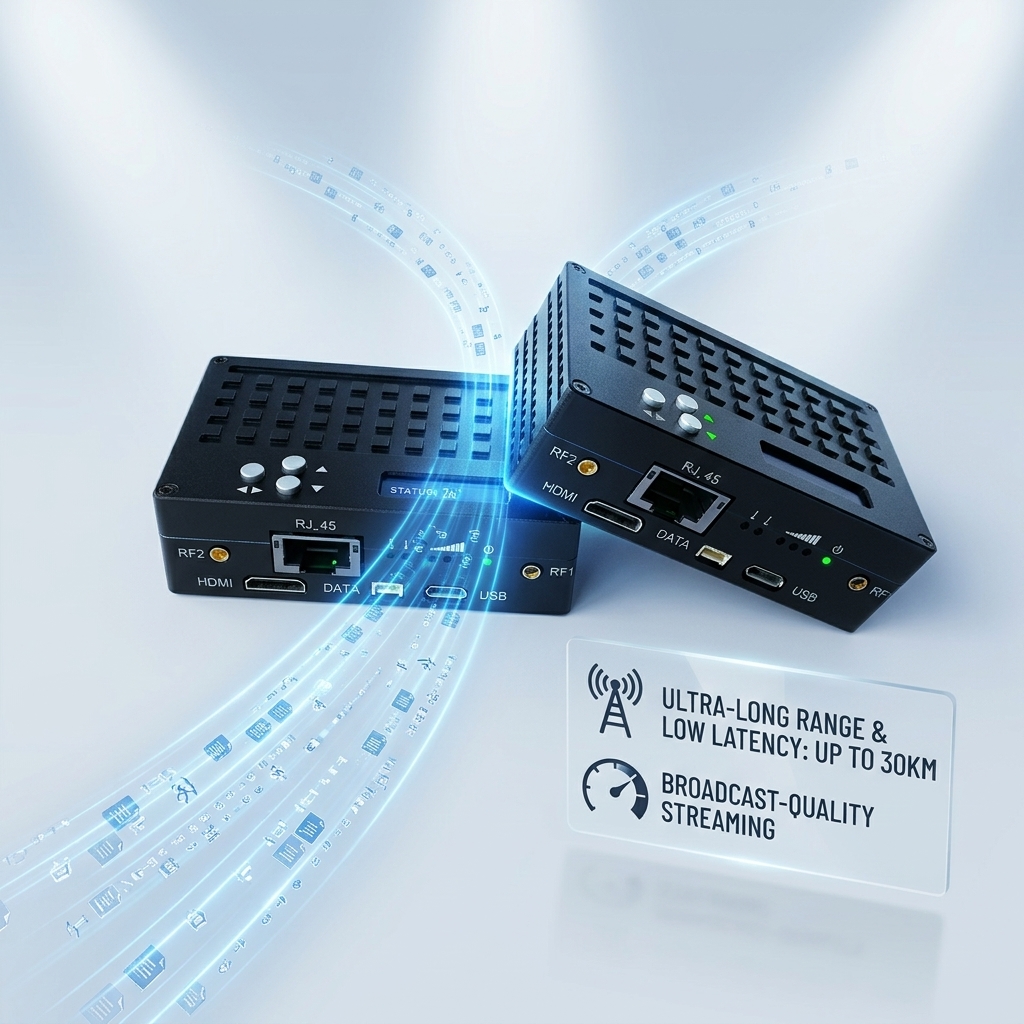

HN-550 Plus 1080P HDMI COFDM Video Transmitter with 37dBm 5W Output
Product Introduction:
HN-550 Plus is a zero-latency H.264 1080P HD wireless data transceiver built on TDD-COFDM modulation and advanced time division processing. It provides a complete two-way data channel with AES_128 encryption and an ultra-low latency (20ms) high definition video channel, enabling real-time high-speed mobile transmission of data, audio and video in complex non line of sight environments.
Product features:
● Ultra-low latency (20ms) full HD 1080P video transmission
● 37dBm / 5 Watt adjustable output power with SMA RF interface
● Operating frequency 2402MHz-2482MHz, 1MHz step adjustable
● Standard RS-232 & RS-485 + RJ45 + Mini HDMI interface
● 20Mbps data flow with adaptive dynamic stream allocation technology
● Multiple bandwidth regulation 2MHz / 4MHz / 8MHz
● QPSK, QAM16 and QAM64 modulation with 32 bit CRC and ARQ correction
● 128 bit AES encryption and transparent PTP&PMD network transmission
● Non line of sight (NLOS) high-speed mobile transmission
● High definition OLED panel, simple interface, small size and low power consumption
HN-550 Plus Technical parameters:
| Model | HN-550 Plus |
| Power input | DC 7~17V |
| Power consumption | 12V_1.5A (full load maximum output power) |
| Ethernet | 10/100 BaseT, Auto-MDI/X, IEEE 802.3 |
| TCP, UDP, TCP/IP, ARP, ICMP, DHCP, HTTP, SNMP, FTP, DNS |
| Video input | Mini HDMI interface |
| Data input | RS-232 & RS-485 |
| RJ45 |
| Operating frequency | 2402MHz-2482MHz, step 1MHz adjustable |
| Output power | 37dBm / 5 Watt adjustable |
| RF antenna interface | SMA |
| Bandwidth | 2MHz / 4MHz / 8MHz |
| Encryption | 128 bit AES |
| Correction mechanism | 32 bit of CRC, ARQ |
| Modulation | QPSK, QAM16, QAM64 |
| Video encoding | H.264 |
| Video resolution | 1080P full HD |
| End-to-end latency | 20ms |
| Data flow | Up to 20Mbps, adaptive dynamic stream allocation |
| Parameter control | By adjusting the parameters of OLED control panel |
| Dimensions | 79mm x 52mm x 31mm |
| Weight | 160g |
Applications:
Widely applied in UAV systems, fire fighting, unmanned equipment, intelligence control and other complex environments requiring real-time HD video and bidirectional data links.
OEM and Customization:
Frequency band, output power level, interface configuration and housing labeling can be customized for volume orders. Evaluation samples are available, and engineering support is provided for protocol integration and antenna matching.
