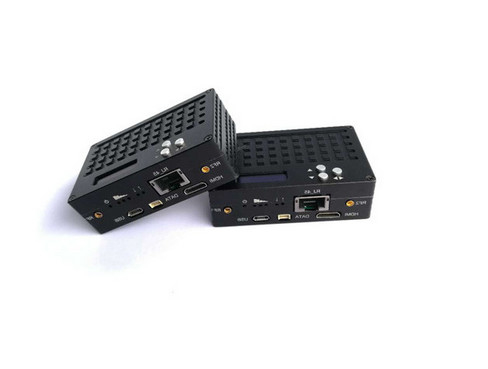

Full HD 1080P Portable COFDM Miniature Video Transmitter H.264

Full HD 1080P Portable COFDM Miniature Video Transmitter H.264

  • Full HD 1080P Portable COFDM Miniature Video Transmitter H.264
Full HD 1080P Portable COFDM Miniature Video Transmitter H.264
Product Details:
Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-550
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Professional carton box package
Delivery Time: 2~3 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Output Frequency: 2405~2477MHZ Output Power: 30dBm
Encryption: 128 Bit AES Modulation: TDD-COFDM,Time Division Duplex Mode
Video Encoding: H.264 Video Input: HDMI
High Light:

H.264 COFDM Video Transmitter

,

1080P COFDM Miniature Video Transmitter

,

Portable COFDM Transmitter





Product Introduction:



HN-550 H.264 TDD_COFDM this product is our company released latest zero-latency H.264 1080P HD wireless transmission equipment,the use of advanced time division processing technology and leading COFDM modulation technology,providing a complete two-way data transmission channel (supports AES_128 encryption), and ultra-low latency (20ms) high-definition video transmission channel, the perfect realization of real-time,high-speed mobile data, audio and video transmission.





Product features:



1, With super linear design of power amplifier, transmitting power can be increased and nonlinear distortion can be effectively decreased.

2, Aluminum structural design, with natural heat dissipation or forced air cooling design, equipment operational reliability can be improved.

3, With simple debugging procedure, signal opening can be achieved without specialized instruments.

4, With multiple choices in local frequency.

5, Small in size, easy for construction and maintenance.

6, With LED touch control panel monitors the operation in real time.







HN-550 Technical parameters:



Model HN-550TX & HN-550RX
Power input DC 7~17V
Power consumption 12V_1A (full load maximum output power)



Ethernet

10/100 BaseT,Auto-MDI/X,IEEE 802.3
TCP,UDP,TCP/IP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS
Video input Mini HDMI interface, RJ45



Data input

RS-232&RS-485
RJ45
Output frequency 2405MHz-2477MHz,Step 1MHz adjustable
Output power 30dBm
RF Antenna interface MMCX
Bandwidth 2.0 MHz /4.0MHz/8.0MHz
Encryption 128 bit AES
Correction mechanism 32 bit of CRC,ARQ
Modulation TDD-COFDM,Time division duplex mode
Video encoding H.264
Parameter control By adjusting the parameters of OLED control panel
Dimensions 77mm*51mm*24mm
Weight 120g





Application of COFDM Video Transmitter :

This device can be widely used in army, security and protection,fire control,emergency areas etc.



How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;
