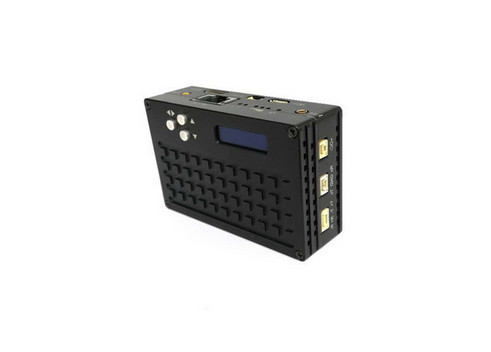

Wireless HD Video Transmitter Data Full Duplex Transceiver HN-550 H.264

Wireless HD Video Transmitter Data Full Duplex Transceiver HN-550 H.264

  • Wireless HD Video Transmitter Data Full Duplex Transceiver HN-550 H.264
Wireless HD Video Transmitter Data Full Duplex Transceiver HN-550 H.264
Product Details:
Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-550
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Professional carton box package
Delivery Time: 2~3 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Output Power: 30dBm Bandwidth: 2MHZ/4MHZ/8MHZ
Modulation: TDD-COFDM,Time Division Duplex Mode Video Encoding: H.264
Video Input: HDMI Correction Mechanism: 32 Bit Of CRC,ARQ
High Light:

Wireless full duplex transceiver


Wireless COFDM Video Transmitter


HD COFDM Video Transmitter

Full HD1080P HDMI cofdm video transmitter miniature full duplex data transceiver


Product Introduction:

HN-550 H.264 TDD_COFDM this product is our company released latest zero-latency H.264 1080P HD wireless transmission equipment,the use of advanced time division processing technology and leading COFDM modulation technology,providing a complete two-way data transmission channel (supports AES_128 encryption), and ultra-low latency (20ms) high-definition video transmission channel, the perfect realization of real-time,high-speed mobile data, audio and video transmission.


Product features:

1. Wide frequency response and low noise design.

2. Low power consumption linear design, improve transmit power and reduce nonlinear distortion.

3. Low group delay, suitable for digital signal transmission.

4. ALC maintains constant power output.

5. Proved by standing wave ratio.

6. Applied to single-channel or multi-channel UHF digital TV transmission system.

7. Support broadband frequency forwarding of HFC, AML, MMDS digital TV signals.

8. The wireless network coverage of digital TV can be realized at low cost.

9. Provide automatic and manual switching backup system.

10. Built-in shunt series power lightning arrester to prevent lightning surge and transient

11. Local monitoring.

12. Wireless remote monitoring (optional).




HN-550 Technical parameters:


Model HN-550TX & HN-550RX
Power input DC 7~17V
Power consumption 12V_1A (full load maximum output power)



10/100 BaseT,Auto-MDI/X,IEEE 802.3
Video input Mini HDMI interface, RJ45


Data input

Output frequency 2405MHz-2477MHz,Step 1MHz adjustable
Output power 30dBm
RF Antenna interface MMCX
Bandwidth 2.0 MHz /4.0MHz/8.0MHz
Encryption 128 bit AES
Correction mechanism 32 bit of CRC,ARQ
Modulation TDD-COFDM,Time division duplex mode
Video encoding H.264
Parameter control By adjusting the parameters of OLED control panel
Dimensions 77mm*51mm*24mm
Weight 120g





Widely application for UAV system, high speed railway, fire fighting, security, intelligence control and other complex environments.
