| Brand Name: | Huanuo |
| Model Number: | HN-530 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2~3 working days |
| Payment Terms: | T/T |
| Output Power: | 1 Watt | Video Encoding: | H.264,MPEG-2 |
|---|---|---|---|
| CVBS: | NTSC 640×480 | PAL: | 720×576 |
| Audio Channel: | 2 Channels | Audio Encoder: | ISO/IEC13818-3(MPEG-1) |
| High Light: | 2 Channels COFDM Video Transmitter,ODM COFDM Video Transmitter,2 Channels COFDM Transmitter |
||
Product introduction:

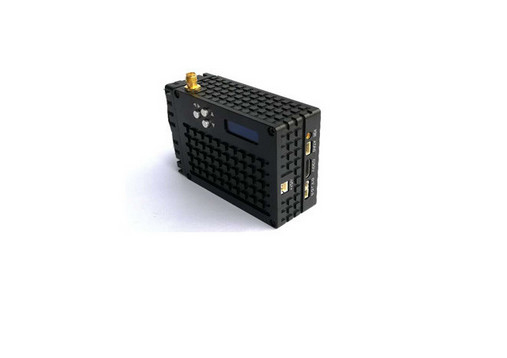

HN-530 is our company's latest micro long-distance high-definition wireless video transmission equipment, using COFDM multicarrier modulation technology, high efficiency and innovative H.264 compression encoding scheme, the coding efficiency, reduced coding delay, algorithm optimization, anti-error rate and further improve the image quality of a fruitful refined and improved, at the lowest rate to achieve the best image compression. Broadcasting standard embedded module design based on the use of advanced video pre-processing technology and efficient video coding algorithm to provide high-quality, low-rate broadcast audio and video signals to high-definition digital television broadcasting systems, mobile TV system, IPTV systems, thereby easily manage network expansion problems, greatly enhance the utilization of the available bandwidth, effectively save transmission costs for operators
Key Features:
1, With super linear design of power amplifier, transmitting power can be increased and nonlinear distortion can be effectively decreased.
2, Aluminum structural design, with natural heat dissipation or forced air cooling design, equipment operational reliability can be improved.
3, With simple debugging procedure, signal opening can be achieved without specialized instruments.
4, With multiple choices in local frequency.
5, Small in size, easy for construction and maintenance.
6, With LED touch control panel monitors the operation in real time.
Application:
This product is widely used in high quality and high standard
requirements of aerial photography,News, sports events, hidden
investigation, video surveillance,fire fighting,real-time wireless video transmission and other applications.
HN-530 Specifications:
| Model | HN-530 |
| DC input range | DC 6~12V(Reverse Polarity Protected) |
| Current | 1.0A_12V/12W(CVBS) |
| 1.0A_12V/12W(SDI) | |
| 1.2A_12V/15W(HDMI) | |
| Video Input | CVBS:NTSC 640×480 |
| PAL 720×576 | |
| SDI:Support up to 1080i/30 | |
| Mini HDMI:Support HD1080P,720P, | |
| Audio input | Microphone/cable(option) |
| Audio Channel | 2 channels |
| Audio encoder | ISO/IEC13818-3(MPEG-1) |
| Bandwidth | 2.0/2.5/4.0/8.0MHz |
| Radio Frequency | 300MH~2700MHz,stepping 1MHz(other frequencies on request) |
| Output Power | 26dBm~30dBm/400mW~1.0W(can customized) |
| RF interface | SMA |
| Encryption | AES 128 |
| FEC | 1/2,2/3,3/4,5/6,7/8 |
| Guard Interval | 1/32,1/16,1/8,1/4 |
| Carriers | 2K |
| Video encoding | H.264,MPEG-2 |
| Modulation | COFDM |
| Constellation | QPSK,16QAM,64QAM |
| Parameter control mode | Through OLED display panel to set the relevant parameters |
| Dimensions | 78mm*60mm*31mm |
| Weight | 199g |
| Operating temperature | -20℃~70℃ |
| HN-530 accessories | 2P/2.0 Power cord,2P/1.25 Analog video cable,3P/1.25 Audio cable. |
FAQ
What can you buy from us?
Wireless HD Video Transmitter,Codec Module,Antenna,Video/Data/Rc Transmission System,Long Range Video Transmission
Why should you buy from us not from other suppliers?
Our core R&D team comes from the first-class university in China, major in communication engineering.We believe that wireless
connection will keep on developing in professional markets in the future.
