| Place of Origin: | China |
| Brand Name: | Huanuo |
| Certification: | CE/FCC/ROHS |
| Model Number: | HN-512Pro&HN-320 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | professional carton box package |
| Delivery Time: | 2~3 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 pieces per month |
| Encryption: | COFDM Video Transmitter | Video Encoding: | H.264 |
|---|---|---|---|
| Video Input: | CVBS Or HDMI+CVBS | Modulation: | Cofdm 2K |
| Constellation: | QPSK,16QAM,64QAM | Bandwidth: | 8MHz |
| Highlight: | COFDM Wireless Hdmi Video Transmitter,1080P Wireless Hdmi Video Transmitter,UHF COFDM digital video transmitter |
||
Product description:
Long Range Wireless Video Transmitter 100km 800mhz for Surveillance Camera is a powerful HD transmission system. Using COFDM (multi-carrier modulation technology) with mobile communication technology as the core, in the case of high-speed movement and heavy building block transmission in the urban environment, it can transmit full HD digital video signals with good quality and stability. Support full HD 1080P (1080i) H.264 encoding format and HD-MI/SDI two-way high-definition input (single choice), support stereo balanced audio input and narrow-band transmission system.
Product features
● Support high definition analog video input NTSC/PAL
● Support HD mini HDMI 1080P, 720P video input, provide good compatibility
● Menus can be changed at any time
● Support military level non-standard 128 bit dynamic AES encryption
● Support non line of sight (NLOS), high-speed mobile transmission
● High performance, high capacity lithium battery powered (battery can be replaced)
● Small size, light weight, easy to carry, using air-cooling fin aluminum shell
●OLED display control interface with high brightness and low power consumption
Technical characteristics
| Model | HN-512PRO |
| Voltage | DC 6~12V(reverse polarity protected) |
| External lithium battery DC7.2V/1400mA(Replaceable) | |
| Current | 600mA-12V/0.8W(CVBS) |
| 700mA-12V/0.8W(HDMI/CVBS) | |
| Video input(optional) | CVBS |
| CVBS+Mini HDMI | |
| Audio Input | Lotus interface |
| Audio Coding | ISO/IEC13818-3(MPEG-1) |
| Bandwidth | 2/4/8MHz |
| TX Frequency | 300MH~860MHz stepping in 1MHz(other frequencies on request) |
| RF Output Power | 26dBm/400mW(can be customized) |
| RF interface | SMA |
| Encryption | dynamic 128 bit AES encryption |
| FEC | 1/2,2/3,3/4,5/6,7/8 |
| Guard Interval | 1/32,1/16,1/8,1/4 |
| Carriers | 2K |
| Encoding | H.264,MPEG-2 |
| Modulation | COFDM |
| Constellation | QPSK,QAM16,QAM64 |
| Parameter control mode | Through OLED display panel to setting the relevant parameters |
| Dimensions | 100mm*59mm*16mm |
| Weight | 140g |
| Temperature | -20℃~70℃ |
| HN-512PRO accessories |
7.2V/1400m Lithium battery and charger 5-pin aircraft head wiring, |
| Compatible receiver |
SK-320 receiver module /HN-320 receiver SK-620 receiver module HN-430HD hand-held receiver |
Application:
This product is widely used in high quality and high standard requirements of aerial photography,News, sports events, hidden investigation,video surveillance,real-time wireless video transmission and other fields.

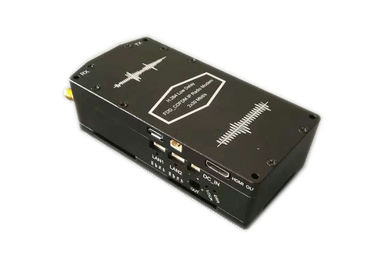

HN-320 cofdm video receiver
● Support COFDM model H.264/MPEG2 full-featured video decoding
● Support NLOS,High-speed movement transmission
● Digital operation panel and display,easy to use
● Support dual antenna multi-carrier diversity reception
Technical parameters
| Model | HN-320 |
| Voltage | DC 6~15V |
| Current | 350mA_12V |
| Receive sensitivity | -102dBm/2MHz |
| Video output | CVBS:Support D1 SD resolution |
| HDMI:Support HD1080,720P,576,480 | |
| Bandwidth | 2/2.5/4/8MHz |
| Radio frequency | 300MHZ~860MHz,stepping 1MHz |
| Input | SMA |
| Decoding | MPEG2/H.264 |
| Demodulation | COFDM |
|
Parameter control
mode |
Through the LCD display panel to set the
related parameters |
| Dimension | 125mm*73mm*26mm |
