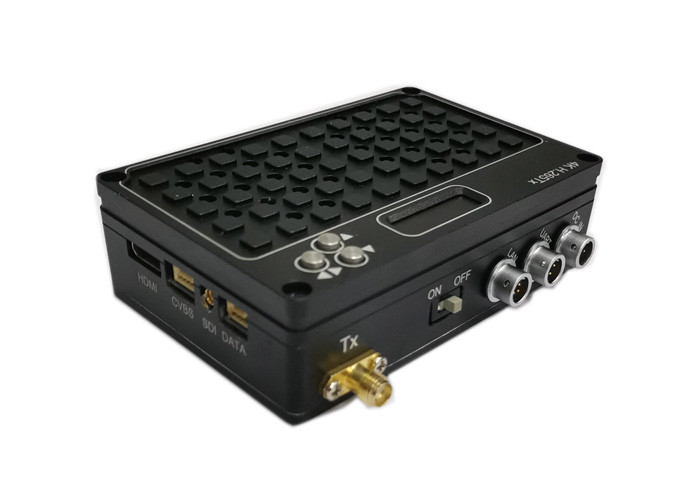

Full High Definition 1080P COFDM Wireless Video Transmitter 1500MHz

Full High Definition 1080P COFDM Wireless Video Transmitter 1500MHz

Full High Definition 1080P COFDM Wireless Video Transmitter 1500MHz
Full High Definition 1080P COFDM Wireless Video Transmitter 1500MHz
Full High Definition 1080P COFDM Wireless Video Transmitter 1500MHz
Product Details:
Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-710
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2~3 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Video Encoding: H.265 Name: COFDM Wireless Video Transmitter
Radio Frequency: 300MHz - 1500MHz,stepping 1MHz Output Power: 24dBm/200mW(can Customized)
RF Interface: MMCX Encryption: Dynamic 128 Bit AES
Modulation: Cofdm Constellation: QPSK,QAM16,QAM64
High Light:

1080P COFDM Wireless Video Transmitter

,

COFDM Wireless Video Transmitter

,

cofdm digital wireless video transmitter

Full High Definition 1080P COFDM Wireless Video Transmitter 1500MHz



Product introduction



HN-710 H.265 HD COFDM is the latest COFDM video transmitter that supports multi-channel IP input, supports full-featured interface (HDMI/SDI/CVBS) with COFDM transmission in a small, lightweight chassis.It uses a highly integrated embedded design, ultra-linear digital predistortion RF design, high-definition coding, digital modulation, full-band RF output, supports narrowband (1MHz), low latency, transparent data long range transmission applications,improve the reliability in non-line-of-sight and complex environments.

HN-710 supports video/audio/data transmission with selectable modulations bandwidths of 1, 2, 4 and 8MHz,the video quality has been greatly improved compared to other encoders by using advanced features of the H.265 encoder.HN-710 has a simple and user-friendly LCD control panel. The user interface allows quick control of preset selection, RF power, bandwidth, RF frequency,modulator and ect.

The HN-710 transmitter is capable of AES encryption, making it ideal for high-definition digital broadcasting,public security monitoring, covert surveillance, public security, armed police, fire-figting and other secure transmission applications,widely used in multi-channel video streaming, high standard unmanned control system, intelligent control equipment.



Product features

  • H.265 high-efficiency full HD 1080p compression encoding
  • Full-featured interface, HDMI/SDI/CVBS
  • COFDM ultra-narrow band modulation technology
  • Supports one way UDP unidirectional network video stream
  • Support full-band/ultra-narrow band /multi-bandwidth modulation (1MHZ/2MHZ/4MHZ/8MHZ)
  • Support transparent network/serial port high rate transmission
  • Adaptive multi-video format input
  • Configuration menu real-time preset
  • Supports 128-bit dynamic AES encryption
  • Highly integrated modular combination design
  • Compact size, light weight, easy to carry, using heat sink aluminum chassis



Application



It is suitable for UAV aerial photography, concealed detection, image monitoring and real-time transmission wireless images.





Technical characteristics





Model HN-710
DC input range DC 6~17V
Working Current 700mA_12V/10Watt
Video input SDI/HDMI/CVBS
UART interface

Transparent TTL serial port

unidirectional data transmission

LAN port 1*UDP port
Date Rate 30Mbits/S_RJ45 & 115200bps_RS232
Channel bandwidth 1/2/4/8MHZ
Operating frequency 300MH~2500MHz,stepping 1MHz
Output Power 27dbm(can customized)
Encryption Dynamic 128 bit AES
FEC 1/2,2/3,3/4,5/6,7/8
Guard interval 1/32,1/16,1/8,1/4
Video encoding H.265
Modulation COFDM,QPSK,QAM16,QAM64
RF interface SMA
Parameter control mode Setting related parameters by control pannel
Dimension 80mm*54mm*23mm
Weight 146g







Description of COFDM Video Transmitter

Long Range Wireless Video Transmitter 100km 800mhz for Surveillance Camera is a powerful HD transmission system. Using COFDM (multi-carrier modulation technology) with mobile communication technology as the core, in the case of high-speed movement and heavy building block transmission in the urban environment, it can transmit full HD digital video signals with good quality and stability. Support full HD 1080P (1080i) H.264 encoding format and HD-MI/SDI two-way high-definition input (single choice), support stereo balanced audio input and narrow-band transmission system.





FAQ

What can you buy from us?

Wireless HD Video Transmitter,Codec Module,Antenna,Video/Data/Rc Transmission System,Long Range Video Transmission



Why should you buy from us not from other suppliers?

Our core R&D team comes from the first-class university in China, major in communication engineering.We believe that wireless

connection will keep on developing in professional markets in the future.
