Place of Origin: | China |
Brand Name: | Huanuo |
Certification: | CE/FCC/ROHS |
Model Number: | HN-770 |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Negotiation |
Packaging Details: | Professional carton box package |
Delivery Time: | 1~2 working days |
Payment Terms: | T/T |
Supply Ability: | 500 pieces per month |
Encryption: | 128bit AES | Working Voltage: | DC 6~17V |
---|---|---|---|
Audio: | Push To Talk | Output Power: | 33dBm |
Channel Bandwidth: | 1.4MHz/3MHz/5MHz/10MHz/20MHz | Operating Frequency: | 1420~1450MHz |
Highlight: | Self Healing IP Radio Modem,33dBm IP Radio Modem,Self Healing data radio modem |

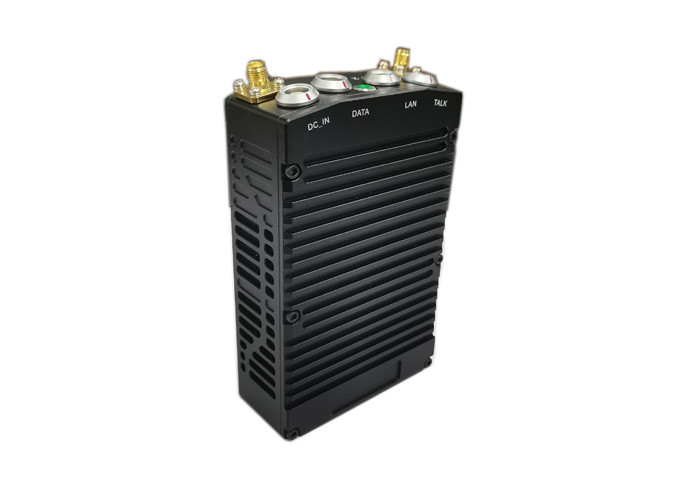

Self Healing IP Radio Modem IP Mesh Radio Self-Forming Mesh Network
Product introduction
HN-770 is a COFDM IP mesh radio that can be used to create a self-healing, mobile and dynamic mesh network. HN-770 MESH video system is a powerful addition to any wireless communication surveillance system. Each HN-770 radio in the same network connect to other HN-770 based equipment to create a self-healing,mobile and dynamic surveillance mesh network.HN-770 IP MESH radio also has self-healing feature. When one of the node stops working, the rest of the nodes can communicate with each other directly or through one or more intermediate nodes.Each HN-770 radio can routes video, voice and data around the wireless network, This makes the system ideal for intelligent control equipment ground-to-ground applications,widely used in intelligent robots control,
unmanned surface vehicle,and unmanned boat.
Key Features
Technical Specifications
Model | HN-770 |
DC input range | DC 6~17V |
Working Current | 1.5A_12V |
Data Port | RS-485,CAN |
LAN port | Ethernet |
Date Rate | Up to 20Mbps (Adaptive) |
Number of nodes | Up to 24 |
PTT(audio) | Push to talk, full duplex audio |
Channel bandwidth | 1.4MHz/3MHz/5MHz/10MHz/20MHz |
Operating frequency | 1420~1450MHz |
Output Power | 33dBm |
Encryption | Dynamic 128 bit AES |
RF interface | SMA |
Parameter control mode | Setting related parameters by control pannel |
Dimension | 122mm*75mm*34mm |
Weight | 541g |
