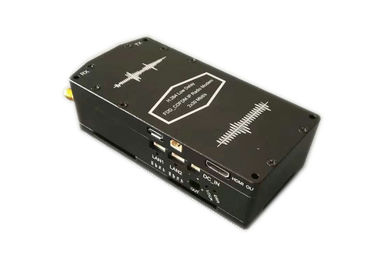

2700MHZ 30dbm HDMI Cofdm Video Transmitter Push To Talk

2700MHZ 30dbm HDMI Cofdm Video Transmitter Push To Talk

  • 2700MHZ 30dbm HDMI Cofdm Video Transmitter Push To Talk
2700MHZ 30dbm HDMI Cofdm Video Transmitter Push To Talk
Product Details:
Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-730
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Professional carton box package
Delivery Time: 1~2 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Operating Frequency: 300~2700MHZ Output Power: 30dbm
Channel Bandwidth: 1/2/4/8MHz Modulation: COFDM 2K
Encryption: 128bit AES Video Interface: HDMI
High Light:

30dbm Cofdm Video Transmitter


HDMI Cofdm Video Transmitter


2700MHZ Full Duplex Data Transceiver

HDMI Cofdm Video Transmitter push to talk full duplex data transceiver



Product Introduction:


HN-730 is a Frequency Division Duplex transceiver designed for use in long-range un-manned vehicles,manned vehicles,unmanned boat and ground stations, using COFDM multi carrier modulation and demodulation technology supporting non line of sight range (NLOS) transmission, supports narrow band (1MHz/2MHZ), low latency, high sensitivity long range transmission applications, and uses transparent IP data interface to provide a balanced and stable high-speed data rate uplink ( 30 Mbit/s) and downlink( 30 Mbit/s), highly integrated embedded design,super linear digital predistortion (Digital Predistortion) RF design,improve your reliability in non-line-of-sight and complex environments, enhance building penetration,and provide law enforcement,high definition digital broadcasting, security system, public security, fire-fighting with the performance of COFDM and flexibility of IP, all within the secure network.It is widely used in multi-channel video stream transmission, high standard unmanned control system and intelligent control equipment.




Product features:


  • Push to talk,two way audio
  • Support HDMI interface with zero encoder,small delay time
  • Using non-standard COFDM modulation and demodulation technology
  • Support non line of sight (NLOS) and high-speed mobile transmission.
  • low latency /End to end transmission large data
  • Transparent network / serial data transmission
  • Supports 128-bit dynamic AES encryption
  • Support full band / ultra narrow band / multi bandwidth modulation (1MHz/2MHz/4MHz/8MHZ).
  • Integrated design, small volume, low power consumption



Technical parameters



Model HN-730
Working voltage DC 6~17V
TX output frequency



Stepping 1MHz

RX input frequency



Stepping 1MHz

Channel bandwidth 1/2/4/8MHz
Output Power

30dbm(can customized),

Step 1 dBm

Audio Bi-directional audio,push to talk
Encryption and decryption 128bit AES(Dynamic adjustable key)
Modulation and demodulation COFDM 2K
Data Rate 2x30Mbit/s_RJ45 115200bps_RS232
Input interface HDMI




Widely application for UAV system, high speed railway, fire fighting, security, intelligence control and other complex environments.
