Low Latency Push To Talk 9W 2500MHZ COFDM Transceiver RS232

                                                 mini size cofdm transceiver low latency push to talk mutliband video transceiver

Product introduction

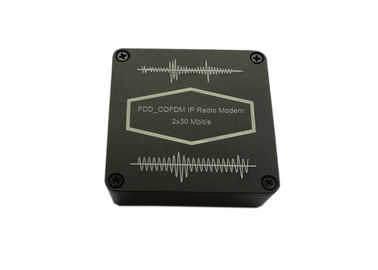

HN-722(54mm*54mm*19mm)is a Frequency Division Duplex transceiver designed for use in long-range un-manned vehicles,manned vehicles,unmanned boat and ground stations, using COFDM multi carrier modulation and demodulation technology supporting non line of sight range (NLOS) transmission, supports narrow band (1MHz/2MHZ), low latency, high sensitivity long range transmission applications, and uses transparent IP data interface to provide a balanced and stable high-speed data rate uplink ( 30 Mbit/s) and downlink( 30 Mbit/s), highly integrated embedded design,super linear digital predistortion (Digital Predistortion) RF design,improve your reliability in non-line-of-sight and complex environments, enhance building penetration,and provide law enforcement,high definition digital broadcasting, security system, public security, fire-fighting with the performance of COFDM and flexibility of IP, all within the secure network.It is widely used in multi-channel video stream transmission, high standard unmanned control system and intelligent control equipment.

Key features

• Small-size, low weight, and low power ideal for UAV systems
• Support full band / ultra narrow band / multi bandwidth modulation (1MHZ/2MHZ/4MHZ/8MHZ).
• Low latency /End to end transmission large data stream
• Transparent network / serial data transmission
• Connect more reliably in non line of sight (NLOS) and high-speed mobile conditions.
• Non-standard 128 bit dynamic AES encryption
• Parameters can be modified through network ports
• Integrated design, small volume, low power consumption

Technical characteristics
