4K HEVC UHD Signals H.265 Encoder Cofdm Video Transmitter

4K HEVC UHD Signals H.265 Encoder Cofdm Video Transmitter

  • 4K HEVC UHD Signals H.265 Encoder Cofdm Video Transmitter
4K HEVC UHD Signals H.265 Encoder Cofdm Video Transmitter
Product Details:
Place of Origin: Shenzhen
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-760
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: professional carton box package
Delivery Time: 2~3 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Bandwidth: 1Mhz/2MHz/4Mhz/8Mhz Video Input: SDI/HDMI/CVBS
Output Power: 27dB Encryption: Dynamic 128 Bit AES
LAN Port: 1*UDP Port Guard Interval: 1/32,1/16,1/8,1/4
Video Encoding: H.265 Weight: 182g
High Light:

H.265 Encoder Cofdm Video Transmitter


UHD Signals Cofdm Video Transmitter


4K HEVC Ofdm Receiver Module

                          4K HEVC UHD signals long range broadcast H.265 encoder cofdm video transmitter​



Product introduction

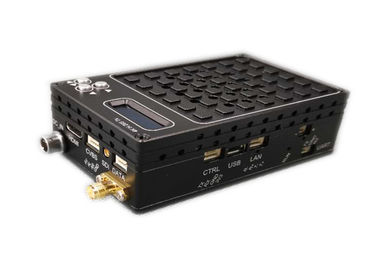

HN-760 H.265 4K HD COFDM is the latest COFDM video transmitter that supports multi-channel IP input, supports full-featured interface (HDMI/SDI/CVBS) with COFDM transmission in a small, lightweight chassis.It uses a highly integrated embedded design, ultra-linear digital predistortion RF design, high-definition coding, digital modulation, full-band RF output, supports narrowband (1MHz), low latency, transparent data long range transmission applications,improve the reliability in non-line-of-sight and complex environments.


HN-760 supports video/audio/data transmission with selectable modulations bandwidths of 1, 2, 4 and 8MHz,the video quality has been greatly improved compared to other encoders by using advanced features of the H.265 encoder.HN-760 has a simple and user-friendly LCD control panel.The user interface allows quick control of preset selection, RF power, bandwidth, RF frequency,modulator and ect. All the parameters of the transmitter can be configured in the field. A wide range of accessories allows the use of this equipment in many and different applications.


The HN-760 transmitter is capable of AES encryption, making it ideal for high-definition digital broadcasting,public security monitoring, covert surveillance, public security, armed police, fire-figting and other secure transmission applications,widely used in multi-channel video streaming, high standard unmanned control system, intelligent control equipment.



Product Features



  • Transmission of true 4K UHD signals
  • H.265 high-efficiency full HD 4K 2160p compression encoding
  • Full-featured interface, HDMI/SDI/CVBS
  • COFDM ultra-narrow band modulation technology
  • Supports one way UDP unidirectional network video stream
  • Support full-band/ultra-narrow band/multi-bandwidth modulation (1MHz/2MHz/4MHz/8MHz)
  • Support transparent network/serial port high rate transmission
  • Adaptive multi-video format input
  • Configuration menu real-time preset
  • Supports 128-bit dynamic AES encryption
  • Highly integrated modular combination design
  • Compact size, light weight, easy to carry, using heat sink aluminum chassis





Model HN-760
DC input range DC 6~17V
Working Current


Video input SDI/HDMI/CVBS
UART interface

Transparent TTL serial port

unidirectional data transmission

LAN port 1*UDP port
Date Rate 30Mbits/S_RJ45 & 115200bps_RS232
Channel bandwidth 1MHz/2MHz/4MHz/8MHz
Operating frequency 300MH~2500MHz,stepping 1MHz
Output Power 27dbm(can customized)
Encryption Dynamic 128 bit AES
FEC 1/2,2/3,3/4,5/6,7/8
Guard interval 1/32,1/16,1/8,1/4
Video encoding H.265
Modulation COFDM,QPSK,QAM16,QAM64
RF interface SMA
Parameter control mode Setting related parameters by control pannel
Heat dissipation Built-in fans
Dimension 95mm*58mm*30mm
Weight 182g
