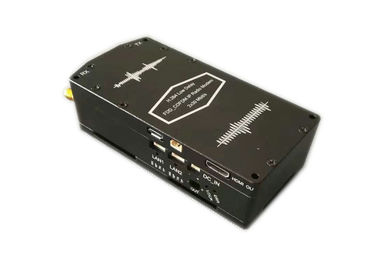

Low Latency Cofdm Video Transmitter Bi Directional Audio Small Volume RJ45

Low Latency Cofdm Video Transmitter Bi Directional Audio Small Volume RJ45

Low Latency Cofdm Video Transmitter Bi Directional Audio Small Volume RJ45
Low Latency Cofdm Video Transmitter Bi Directional Audio Small Volume RJ45
Low Latency Cofdm Video Transmitter Bi Directional Audio Small Volume RJ45
Product Details:
Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-730
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Professional carton box package
Delivery Time: 1~2 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Modulation: COFDM 2K Encryption: 128 Bit AES
Audio: Bi-directional Audio Data Rate: 2x30Mbit/s_RJ45
Resolution: 1080I(1920*1080) Weight: 270g
Highlight:

Low Latency Cofdm Video Transmitter

,

Bi Directional Cofdm Video Transmitter

,

RJ45 Ofdm Receiver Module

H.264 cofdm video transmitter low latency industrial grade long range transceiver



Product Introduction:



HN-730 is a Frequency Division Duplex transceiver designed for use in long-range un-manned vehicles,manned vehicles,unmanned boat and ground stations, using COFDM multi carrier modulation and demodulation technology supporting non line of sight range (NLOS) transmission, supports narrow band (1MHz/2MHZ), low latency, high sensitivity long range transmission applications, and uses transparent IP data interface to provide a balanced and stable high-speed data rate uplink ( 30 Mbit/s) and downlink( 30 Mbit/s), highly integrated embedded design,super linear digital predistortion (Digital Predistortion) RF design,improve your reliability in non-line-of-sight and complex environments, enhance building penetration,and provide law enforcement,high definition digital broadcasting, security system, public security, fire-fighting with the performance of COFDM and flexibility of IP, all within the secure network.It is widely used in multi-channel video stream transmission, high standard unmanned control system and intelligent control equipment.



Applications:



Widely application for UAV system, high speed railway, fire fighting, security, intelligence control and other complex environments.





Product features:



  1. Push to talk,two way audio
  2. COFDM (Coded Orthogonal Frequency Division Multiplexing) modulation and FDD (Frequency-division duplexing) technology

  3. Support HDMI interface with zero encoder,small delay time
  4. Using non-standard COFDM modulation and demodulation technology
  5. Support non line of sight (NLOS) and high-speed mobile transmission.
  6. low latency /End to end transmission large data
  7. Transparent network / serial data transmission
  8. Supports 128-bit dynamic AES encryption
  9. Support full band / ultra narrow band / multi bandwidth modulation (1MHZ/2MHZ/4MHZ/8MHZ).
  10. Integrated design, small volume, low power consumption





Technical parameters



Model HN-730
Working voltage DC 6~17V
TX output frequency

300MHz~860MHz/

1.1G~2.5GHZ(option)

Stepping 1MHz

RX input frequency

300MHz~860MHz/

1.1G~2.5GHZ(option)

Stepping 1MHz

Channel bandwidth 1/2/4/8MHz
Output Power

30dbm(can customized),

Step 1 dBm

Audio Bi-directional audio,push to talk
Encryption and decryption 128bit AES(Dynamic adjustable key)
Modulation and demodulation COFDM 2K
Data Rate 2x30Mbit/s_RJ45 115200bps_RS232
Input interface HDMI
Dimension 180*54*30
Weight 227g
