FDD Cofdm Transceiver IP Network Data Radio Modem 128 Bit AES Encryption For UGV System

FDD Cofdm Transceiver IP Network Data Radio Modem 128 Bit AES Encryption For UGV System

  • FDD Cofdm Transceiver IP Network Data Radio Modem 128 Bit AES Encryption For UGV System
FDD Cofdm Transceiver IP Network Data Radio Modem 128 Bit AES Encryption For UGV System
Product Details:
Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-722Mini
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: professional carton box package
Delivery Time: 2~3 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Encryption: 128 Bit AES Modulation: Cofdm 2K
Radio Frequency: 300MHz~860MHz/ 1.1G~2.5GHZ Channel Bandwidth: 1/2/4/8MHz
Data Port: UART Dimensions: 54mm*54mm*19mm
High Light:

wireless ethernet transceiver

,

wireless hd transceiver

FDD Cofdm transceiver IP network data radio modem suitable for UGV system





Product  features



1.Very low latency

2.End to end large data stream transmission

3.Support full band / ultra narrow band / multi bandwidth modulation (1MHZ/2MHZ/4MHZ/8MHZ)

4.Bi-directional audio,push to talk

5.AES 128 bit dynamic encryption

6.Parameters can be modified through network ports

7.Transparent network / serial data transmission

8.Integrated design, small volume, low power consumption





Product introduction

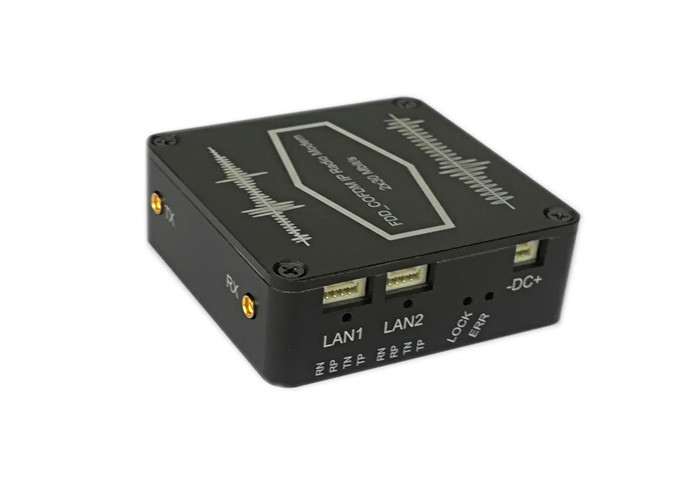

HN-722Mini (54mm*54mm*19mm)is a Frequency Division Duplex transceiver designed for use in long-range un-manned vehicles,manned vehicles,unmanned boat and ground stations, using COFDM multi carrier modulation and demodulation technology supporting non line of sight range (NLOS) transmission, supports narrow band (1MHz/2MHZ), low latency, high sensitivity long range transmission applications, and uses transparent IP data interface to provide a balanced and stable high-speed data rate uplink ( 30 Mbit/s) and downlink( 30 Mbit/s), highly integrated embedded design,super linear digital predistortion (Digital Predistortion) RF design,improve your reliability in non-line-of-sight and complex environments, enhance building penetration,and provide law enforcement,high definition digital broadcasting, security system, public security, fire-fighting with the performance of COFDM and flexibility of IP, all within the secure network.It is widely used in multi-channel video stream transmission, high standard unmanned control system and intelligent control equipment.





Technical characteristics





Model HN-722Mini
Working voltage DC 6~17V
Power consumption 9W
TX output frequency 300MHz~2500MHz
RX input frequency

Low frequency 300MHz~860MHz

High frequency 1.1G~2.5GHZ

(other frequencies on request)

Channel bandwidth 1/2/4/8MHz
Output Power 0-20dbm,Stepping 1 dB
Encryption and decryption 128bit AES(Dynamic adjustable key)
Modulation and demodulation COFDM 2K
Data Rate 2x30Mbit/s_RJ45 115200bps_RS232
RF Antenna interface MMCX
Data port UART
Parameter control Parameters can be modified through network ports
Dimensions 54mm*54mm*19mm
Weight 70g       (with fans 124g)
