| Place of Origin: | China |
| Brand Name: | Huanuo |
| Certification: | CE/FCC/ROHS |
| Model Number: | SK-720 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Professional carton box package |
| Delivery Time: | 1~2 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 pieces per month |
| Operating Frequency: | 300~2700MHZ | Output Power: | -20dbm~0dbm |
|---|---|---|---|
| Channel Bandwidth: | 1/2/4/8MHz | Modulation: | COFDM 2K |
| Encryption: | 128bit AES | Data Rate: | 2x30Mbit/s_RJ45 |
| Working Voltage: | DC 6~17V | Dimensions: | 53mm*120mm*15mm |
| Highlight: | video transmitter module,ofdm receiver module |
||

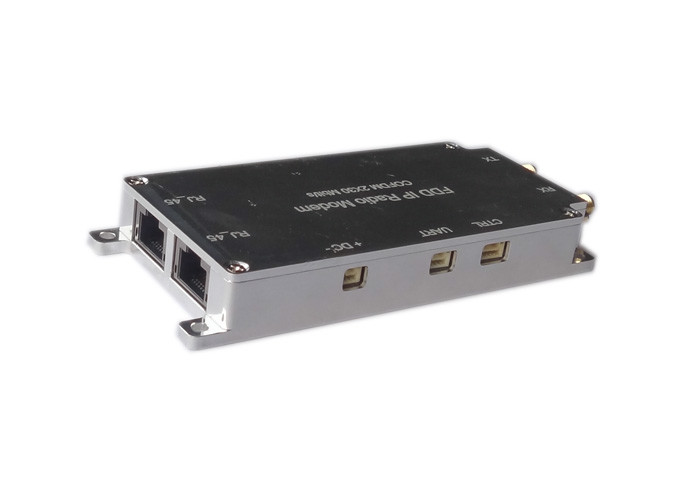

IP radio cofdm module full duplex data link FDD Cofdm transceiver maritime affairs
Product introduction
SK-720 (53X120X15mm) FDD COFDM, using COFDM multi carrier modulation and demodulation technology supporting non sight distance (NLOS) transmission, supports narrow band (1MHz), low latency, high sensitivity long distance transmission applications, and uses transparent IP data interface to provide a balanced and stable high-speed data rate uplink ( 30 Mbit/s) and downlink( 30 Mbit/s), highly integrated embedded design,super linear digital predistortion (Digital Predistortion) RF design, setting network, modulation and demodulation, full frequency RF output in one. It can help you to complete the design of long distance wireless link more conveniently and quickly, and provide high definition digital broadcasting, security system, public security, armed police, fire-fighting and other fields. It is widely used in multi-channel video stream transmission, high standard unmanned control system and intelligent control equipment.
Key features
Technical characteristics
| Model | SK-720 |
| Working voltage | DC 6~17V |
| Working current | 700mA_12V |
| TX output frequency | 300MHz～2500MHz,Stepping 1MHz |
| RX input frequency |
300MHz～860MHz/1.1~2.5GHZ, (other frequencies on request) |
| Channel bandwidth | 1/2/4/8MHz |
| Output Power | -20~0dBm,Step 1 dBm |
| Encryption and decryption | 128bit AES(Dynamic adjustable key) |
| Modulation and demodulation | COFDM 2K |
| Data Rate | 2x30Mbit/s_RJ45 115200bps_RS232 |
| RF interface | SMA |
| Data port | 2xRJ45/1xRS232/LCD control pannel |
| Dimensions | 53mm*120mm*15mm |
| Weight | 138g |
SK-720
