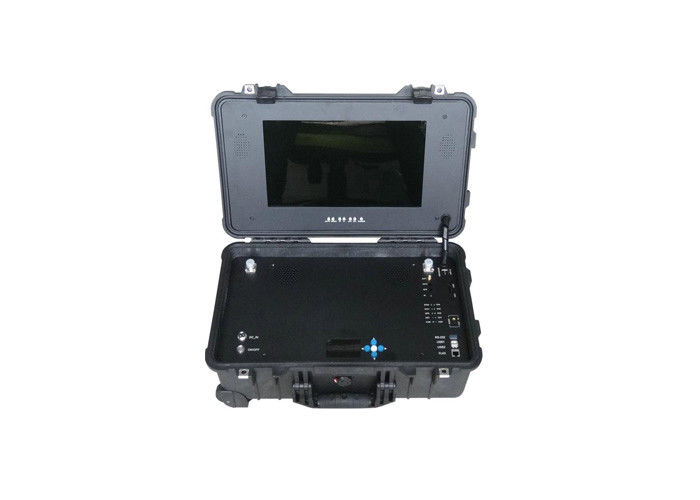

Briefcase Portable COFDM Video Receiver With 15.6 Inch LCD Monitor H.264

Briefcase Portable COFDM Video Receiver With 15.6 Inch LCD Monitor H.264

  • Briefcase Portable COFDM Video Receiver With 15.6 Inch LCD Monitor H.264
Briefcase Portable COFDM Video Receiver With 15.6 Inch LCD Monitor H.264
Product Details:
Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-450R
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2~3 working days
Payment Terms: T/T
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Demodulation: Cofdm Decoding: H.264
Video Output: SDI/HDMI/CVBS Channel Bandwidth: 2/2.5/4/8MHz
Video Display: 15.6 HD TFT LCD Decryption: AES
High Light:

rf video receiver

,

portable video receiver

Briefcase Portable cofdm video receiver with 15.6 Inch LCD Monitor







Product introduction





HN-450R Pelican suitcase portable COFDM high definition video Receiver.Using COFDM modulation technology, and H.264&MPEG-2 image processing technology.Setting receiver module,4G wireless video transmission, vehicle hard disk video, car media player, display ,The battery in one multi-functional monitoring equipment,easy to carry, convenient to monitor and receive real-time video. This device has a high receiver sensitivity, suitable for high-speed mobile environment and non-line of sight (NLOS) conditions transmission.







Key Features





● Using COFDM modulation and MPEG-2 image compression technology

● Support high-speed mobile transmission, audio and video transmission in real time stability

● Can achieve recording, visits, backup and other functions

●Has excellent anti-jamming performance in complex electromagnetic environments

● Support full HD picture quality, no mosaic, save the last one good frame

● Operating frequency can be set within the specified range

● Portable (with lever), easy to carry, can achieve rapid deployment, self-display, ready to use out of the box powered

● Appearance of simple, waterproof, anti-shocking







Technical characteristics





Model HN-450R
Working voltage DC_12V
Working frequency 300~860MHz,Stepping 1MHz
Bandwidth 2/2.5/4/8MHz
Decryption AES
RX,TX Antenna interface N Type
Parameter control mode Through the LCD display panel to set the relevant parameters
Decoding H.264/MPEG-2
Demodulation COFDM
Video display 15.6 HD TFT LCD
Pixel format 1920x1080
Audio Intercom input MIC or LINE-IN input, voice and video are not binding, voice transmission to achieve alone, when bandwidth is low, can achieve the best audio performance
Audio output One way output,audio output and intercom output common interface
Storage Built-in hard drive Media player, support 2000GB above space, CEFS storage structure(streaming storage technology)
Network Wired RJ45, 10M/100M, built-in standard TCP/IP protocol stack, can configure the device and watch video.
Dimensions 950mm*350mm*230mm
