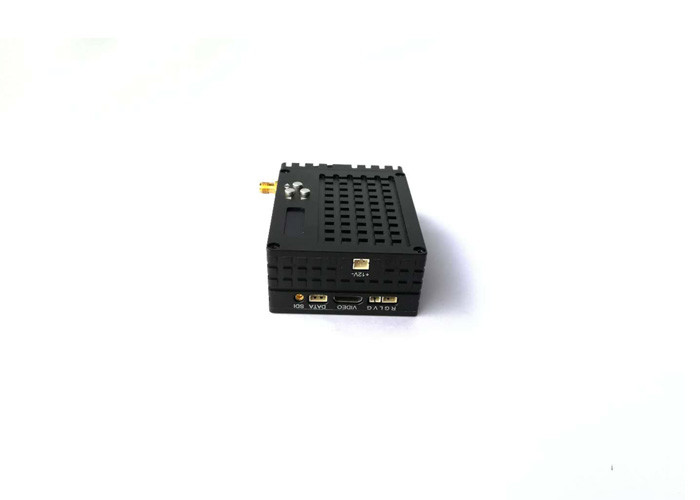

Lightweight Industrial Grade Mini COFDM Transmitter For UAV Video Link System

Lightweight Industrial Grade Mini COFDM Transmitter For UAV Video Link System

  • Lightweight Industrial Grade Mini COFDM Transmitter For UAV Video Link System
Lightweight Industrial Grade Mini COFDM Transmitter For UAV Video Link System
Product Details:
Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-530
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: professional carton box package
Delivery Time: 2~3 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Video Input: HDMI,CVBS And SDI Modulation: Cofdm 2K
Constellation: QPSK,16QAM,64QAM Video Output: 400mW~1.0W(can Customized)
Dimension: 78mm*60mm*31mm Weight: 199g
Highlight:

mini wireless transmitter

,

mini video transmitter

Lightweight mini cofdm transmitter industrial grade long range UAV video link





Product introduction:





HN-530 is our company's latest micro long-distance high-definition wireless video transmission equipment, using COFDM multicarrier modulation technology, high efficiency and innovative H.264 compression encoding scheme, the coding efficiency, reduced coding delay, algorithm optimization, anti-error rate and further improve the image quality of a fruitful refined and improved, at the lowest rate to achieve the best image compression. Broadcasting standard embedded module design based on the use of advanced video pre-processing technology and efficient video coding algorithm to provide high-quality, low-rate broadcast audio and video signals to high-definition digital television broadcasting systems, mobile TV system, IPTV systems, thereby easily manage network expansion problems, greatly enhance the utilization of the available bandwidth, effectively save transmission costs for operators







Key Features:





● Using COFDM modulation technology,low latency with H.264 image encoding technology

● Support composite video NTSC/PAL video input

● Multi-functional Interface (SDI, HDMI, CVBS)

● Multiple video formats full HD1080_30p / 50p / 60p / 50i / 60i, HD720_50p / 60p,

   SD480i / 576i,provide good compatibility

● Support non line of sight (NLOS), high-speed mobile transmission

● Highly integrated combination of modular design

● Small size, light weight, easy to carry, using air-cooling fin aluminum shell

● High power output (0.5W-1W), support for long range transmission





Application:





This product is widely used in high quality and high standard requirements of aerial photography,News, sports events, hidden investigation, video surveillance,fire fighting,real-time wireless video transmission and other applications.







HN-530 Specifications:





Model HN-530
DC input range DC 6~12V(Reverse Polarity Protected)
Current 1.0A_12V/12W(CVBS)
1.0A_12V/12W(SDI)
1.2A_12V/15W(HDMI)
Video Input CVBS:NTSC 640×480
PAL 720×576
SDI:Support up to 1080i/30
Mini HDMI:Support HD1080P,720P,
Audio input Microphone/cable(option)
Audio Channel 2 channels
Audio encoder ISO/IEC13818-3(MPEG-1)
Bandwidth 2.0/2.5/4.0/8.0MHz
Radio Frequency 300MH~2700MHz,stepping 1MHz(other frequencies on request)
Output Power 26dBm~30dBm/400mW~1.0W(can customized)
RF interface SMA
Encryption AES 128
FEC 1/2,2/3,3/4,5/6,7/8
Guard Interval 1/32,1/16,1/8,1/4
Carriers 2K
Video encoding H.264,MPEG-2
Modulation COFDM
Constellation QPSK,16QAM,64QAM
Parameter control mode Through OLED display panel to set the relevant parameters
Dimensions 78mm*60mm*31mm
Weight 199g
Operating temperature -20℃~70℃
HN-530 accessories 2P/2.0 Power cord,2P/1.25 Analog video cable,3P/1.25 Audio cable.
