| Place of Origin: | China |
| Brand Name: | Huanuo |
| Certification: | CE/FCC/ROHS |
| Model Number: | HN-530 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | professional carton box package |
| Delivery Time: | 2~3 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 pieces per month |
| Video Encoding: | H.264,MPEG-2 | Encryption: | AES 128 |
|---|---|---|---|
| Video Input: | HDMI,CVBS And SDI | Modulation: | Cofdm 2K |
| Constellation: | QPSK,16QAM,64QAM | Video Output: | 26dBm~30dBm/400mW~1.0W(can Customized) |
| Highlight: | wireless hdmi module,cofdm hd video transmitter |
||

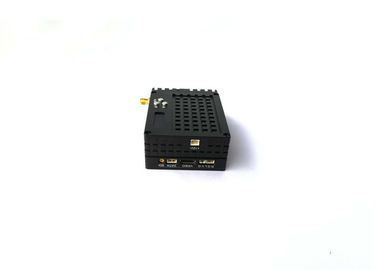

CVBS/HDMI/SDI Cofdm video transmitter H.264 long range UAV video transmitter
Product introduction:
HN-530 is our company's latest micro long-distance high-definition wireless video transmission equipment, using COFDM multicarrier modulation technology, high efficiency and innovative H.264 compression encoding scheme, the coding efficiency, reduced coding delay, algorithm optimization, anti-error rate and further improve the image quality of a fruitful refined and improved, at the lowest rate to achieve the best image compression. Broadcasting standard embedded module design based on the use of advanced video pre-processing technology and efficient video coding algorithm to provide high-quality, low-rate broadcast audio and video signals to high-definition digital television broadcasting systems, mobile TV system, IPTV systems, thereby easily manage network expansion problems, greatly enhance the utilization of the available bandwidth, effectively save transmission costs for operators
Key Features:
● Using COFDM modulation technology,low latency with H.264 image encoding technology
● Support composite video NTSC/PAL video input
● Multi-functional Interface (SDI, HDMI, CVBS)
● Multiple video formats full HD1080_30p / 50p / 60p / 50i / 60i, HD720_50p / 60p,
SD480i / 576i,provide good compatibility
● Support non line of sight (NLOS), high-speed mobile transmission
● Highly integrated combination of modular design
● Small size, light weight, easy to carry, using air-cooling fin aluminum shell
● High power output (0.5W-1W), support for long range transmission
Application:
This product is widely used in high quality and high standard requirements of aerial photography,News, sports events, hidden investigation, video surveillance,fire fighting,real-time wireless video transmission and other applications.
HN-530 Specifications:
| Model | HN-530 |
| DC input range | DC 6~12V(Reverse Polarity Protected) |
| Current | 1.0A_12V/12W(CVBS) |
| 1.0A_12V/12W(SDI) | |
| 1.2A_12V/15W(HDMI) | |
| Video Input | CVBS:NTSC 640×480 |
| PAL 720×576 | |
| SDI:Support up to 1080i/30 | |
| Mini HDMI:Support HD1080P,720P, | |
| Audio input | Microphone/cable(option) |
| Audio Channel | 2 channels |
| Audio encoder | ISO/IEC13818-3(MPEG-1) |
| Bandwidth | 2.0/2.5/4.0/8.0MHz |
| Radio Frequency | 300MH~2700MHz,stepping 1MHz(other frequencies on request) |
| Output Power | 26dBm~30dBm/400mW~1.0W(can customized) |
| RF interface | SMA |
| Encryption | AES 128 |
| FEC | 1/2,2/3,3/4,5/6,7/8 |
| Guard Interval | 1/32,1/16,1/8,1/4 |
| Carriers | 2K |
| Video encoding | H.264,MPEG-2 |
| Modulation | COFDM |
| Constellation | QPSK,16QAM,64QAM |
| Parameter control mode | Through OLED display panel to set the relevant parameters |
| Dimensions | 78mm*60mm*31mm |
| Weight | 199g |
| Operating temperature | -20℃~70℃ |
| HN-530 accessories | 2P/2.0 Power cord,2P/1.25 Analog video cable,3P/1.25 Audio cable. |
