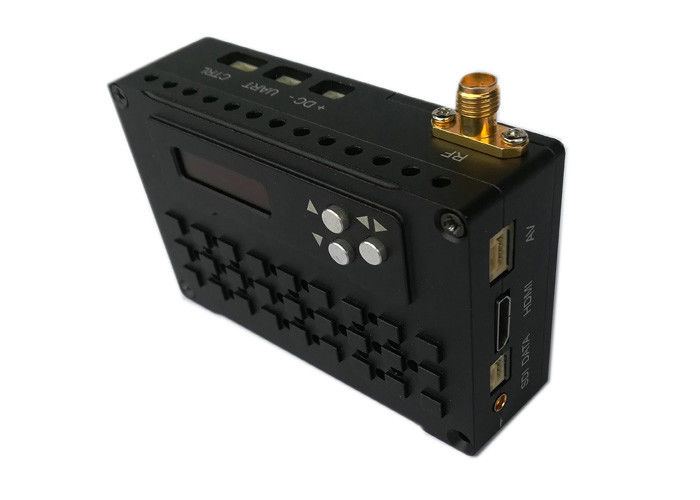

H.265 cofdm video transmitter 4K Video quality industrial grade long range transmitter

H.265 cofdm video transmitter 4K Video quality industrial grade long range transmitter

  • H.265 cofdm video transmitter 4K Video quality industrial grade long range transmitter
H.265 cofdm video transmitter 4K Video quality industrial grade long range transmitter
Product Details:
Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-710
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Professional carton box package
Delivery Time: 1~2 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
DC Input Range: DC 6~17V Video Input: SDI/HDMI/CVBS
Date Rate: 30Mbits/S_RJ45 & 115200bps_RS232 Operating Frequency: 300MH~2500MHz,stepping 1MHz
Video Encoding: H.265 Modulation: COFDM,QPSK,QAM16,QAM64
Encryption: Dynamic 128 Bit AES RF Interface: IPX
Highlight:

wireless hdmi module

,

ofdm receiver module

H.265 cofdm video transmitter 4K Video quality industrial grade long range transmitter





Product introduction



HN-710 H.265 HD COFDM is the latest COFDM video transmitter that supports multi-channel IP input, supports full-featured interface (HDMI/SDI/CVBS) with COFDM transmission in a small, lightweight chassis.It uses a highly integrated embedded design, ultra-linear digital predistortion RF design, high-definition coding, digital modulation, full-band RF output, supports narrowband (1MHz), low latency, transparent data long range transmission applications,improve the reliability in non-line-of-sight and complex environments.



HN-710 supports video/audio/data transmission with selectable modulations bandwidths of 1, 2, 4 and 8MHz,the video quality has been greatly improved compared to other encoders by using advanced features of the H.265 encoder.HN-710 has a simple and user-friendly LCD control panel. The user interface allows quick control of preset selection, RF power, bandwidth, RF frequency,modulator and ect.



The HN-710 transmitter is capable of AES encryption, making it ideal for high-definition digital broadcasting,public security monitoring, covert surveillance, public security, armed police, fire-figting and other secure transmission applications,widely used in multi-channel video streaming, high standard unmanned control system, intelligent control equipment.







Product Features



  • H.265 high-efficiency full HD 1080p compression encoding
  • Full-featured interface, HDMI/SDI/CVBS
  • COFDM ultra-narrow band modulation technology
  • Supports one way UDP unidirectional network video stream
  • Support full-band/ultra-narrow band /multi-bandwidth modulation (1MHZ/2MHZ/4MHZ/8MHZ)
  • Support transparent network/serial port high rate transmission
  • Adaptive multi-video format input
  • Configuration menu real-time preset
  • Supports 128-bit dynamic AES encryption
  • Highly integrated modular combination design
  • Compact size, light weight, easy to carry, using heat sink aluminum chassis





Specifications:



Model HN-710
DC input range DC 6~17V
Working Current 700mA_12V/10Watt
Video input SDI/HDMI/CVBS
UART interface

Transparent TTL serial port

unidirectional data transmission

LAN port 1*UDP port
Date Rate 30Mbits/S_RJ45 & 115200bps_RS232
Channel bandwidth 1/2/4/8MHZ
Operating frequency 300MH~2500MHz,stepping 1MHz
Output Power 27dbm(can customized)
Encryption Dynamic 128 bit AES
FEC 1/2,2/3,3/4,5/6,7/8
Guard interval 1/32,1/16,1/8,1/4
Video encoding H.265
Modulation COFDM,QPSK,QAM16,QAM64
RF interface SMA
Parameter control mode Setting related parameters by control pannel
Dimension 80mm*54mm*23mm
Weight 146g
