Product Details:
Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: SK-720
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Professional carton box package
Delivery Time: 1~2 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Operating Frequency: 300~2700MHZ Output Power: -20dbm~0dbm
Channel Bandwidth: 1/2/4/8MHz Modulation: COFDM 2K
Encryption: 128bit AES Data Rate: 2x30Mbit/s_RJ45
Working Voltage: DC 6~17V Dimensions: 53mm*120mm*15mm
RF Interface: SMA Weight: 138g
Highlight:

audio video transceiver

,

wireless ethernet transceiver

H.265 cofdm transceiver full duplex data long range Tactical Ethernet radio



Product introduction



SK-720 (53X120X15mm) FDD COFDM, using COFDM multi carrier modulation and demodulation technology supporting non sight distance (NLOS) transmission, supports narrow band (1MHz), low latency, high sensitivity long distance transmission applications, and uses transparent IP data interface to provide a balanced and stable high-speed data rate uplink ( 30 Mbit/s) and downlink( 30 Mbit/s), highly integrated embedded design,super linear digital predistortion (Digital Predistortion) RF design, setting network, modulation and demodulation, full frequency RF output in one. It can help you to complete the design of long distance wireless link more conveniently and quickly, and provide high definition digital broadcasting, security system, public security, armed police, fire-fighting and other fields. It is widely used in multi-channel video stream transmission, high standard unmanned control system and intelligent control equipment.





Key features



Using non-standard COFDM modulation and demodulation technology

support non line of sight (NLOS) and high-speed mobile transmission.

low latency /End to end transmission large data

Transparent network / serial data transmission

Military level non-standard 128 bit dynamic AES encryption

Support full band / ultra narrow band / multi bandwidth modulation (1M/2M/4M/8/).

Integrated design, small volume, low power consumption

Provide high definition LCD control panel, make the user interface simple and efficiently





Technical characteristics





Model SK-720
Working voltage DC 6~17V
Working current 700mA_12V
TX output frequency 300MHz~2700MHz,Stepping 1MHz
RX input frequency 300MHz~860MHz,Stepping 1MHz
Channel bandwidth 1/2/4/8MHz
Output Power -20~0dBm,Step 1 dBm
Encryption and decryption 128bit AES(Dynamic adjustable key)
Modulation and demodulation COFDM 2K
Data Rate 2x30Mbit/s_RJ45 115200bps_RS232
RF interface SMA
Data port 2xRJ45/1xRS232/LCD control pannel
Dimensions 53mm*120mm*15mm

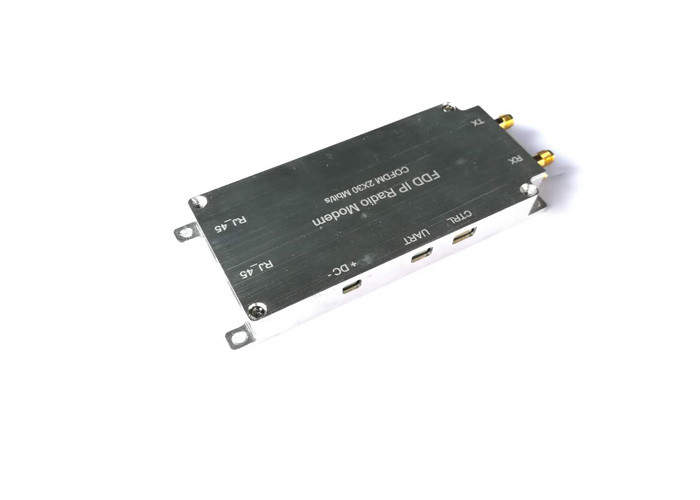

SK-720



Economic And Efficient COFDM Transceiver For Wireless Radio Communication 0
