| Place of Origin: | China |
| Brand Name: | Huanuo |
| Certification: | CE/FCC/ROHS |
| Model Number: | HN-361 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | professional carton box package |
| Delivery Time: | 2~3 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 pieces per month |
| Encryption: | AES 128 | Video Input: | CVBS+SDI /CVBS+HDMI |
|---|---|---|---|
| Modulation: | Cofdm | Bandwidth: | 2/2.5/4/8MHz |
| Output Power: | 33dbm | Video Encoding: | H.264 |
| Radio Frequency: | 300~860MHz ,Stepping1MHz | Audio Channel: | 2 Channels |
| Highlight: | long distance video transmitter,long range wifi transmitter |
||
lightweight cofdm video transmitter industrial grade long range UAV transmitter
Product description

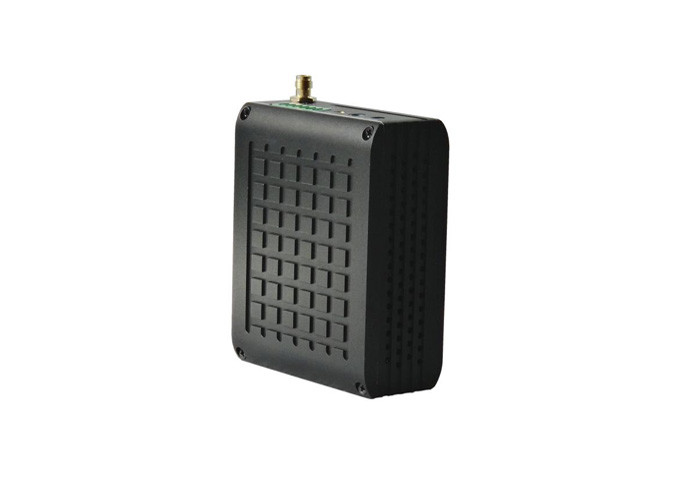

HN-361 This product is our latest Mini HD-SDI wireless video transmission device, using the advanced video preprocessing technologies and efficient video coding algorithms, the device have refined on the improve of coding efficiency,reduce the coding delay,algorithm optimization,anti-ber and improve the quality of video,it can be used the lowest rate to achieve the best image compression.
Features
● Support D1 SD Resolution
● Support SDI embedded audio HD1080,720P,576,480,
Provide good compatibility.
● Support NLOS, High-speed movement transmission
● Highly integrated modular design
● Small size,Lightweight,Easy to carry,using air-cooling fin aluminum shell
● Digital panel display, simple interface, easy to operation
●High output power(2W), support long-distance transmission
Application
This product is widely used in high quality and high standard requirements of aerial photography,News, sports events, hidden investigation, video surveillance,real-time wireless video transmission and other field
Technical Characteristics
| Model | HN-361 |
| Voltage | DC12V |
| Current | 2100mA |
| Video input | AV:3.5mm port, SD analog video signal |
| Camera:2.5mm port,external SD camera | |
| SDI:support HD1080P,720P,576,480,with audio de-embedding function | |
| Radio Frequency | 1250MHz-1450MHz,adjustable,Stepping 1MHz |
| Output power | 20-33dBm, adjustable,Stepping 1dB |
| Bandwidth | 2/2.5/4/8MHz |
| Encryption | AES |
| FFC | 1/2,2/3,3/4,7/8 |
| Guard Interval | 1/32,1/16,1/8,1/4 |
| Encoding | H.264 |
| Modulation | COFDM,QPSK |
| Control Mode | LCD control panel to seting |
| Operating temperature | -10℃ ~ 75℃ |
| Dimensions | 90mm*70mm*32mm |
| Weight | 228g |
