| Place of Origin: | China |
| Brand Name: | Huanuo |
| Certification: | CE/FCC/ROHS |
| Model Number: | HN-550 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Professional carton box package |
| Delivery Time: | 2~3 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 pieces per month |
| Output Power: | 30dBm | Bandwidth: | 2MHZ/4MHZ/8MHZ |
|---|---|---|---|
| Encryption: | 128 Bit AES | Modulation: | TDD-COFDM,Time Division Duplex Mode |
| Video Input: | HDMI | Correction Mechanism: | 32 Bit Of CRC,ARQ |
| Dimensions: | 77mm*51mm*24mm | Weight: | 120g |
| Highlight: | wireless hdmi transmitter receiver,hdmi wireless video sender |
||

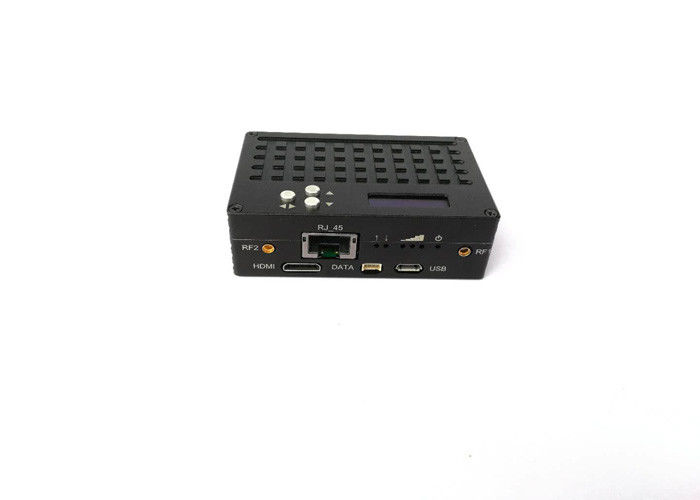

H.264 wireless HDMI video transmitter low latency full duplex data transceiver
Product Introduction:
HN-550 H.264 TDD_COFDM this product is our company released latest zero-latency H.264 1080P HD wireless transmission equipment,the use of advanced time division processing technology and leading COFDM modulation technology,providing a complete two-way data transmission channel (supports AES_128 encryption), and ultra-low latency (20ms) high-definition video transmission channel, the perfect realization of real-time,high-speed mobile data, audio and video transmission.
Product features:
● Provide ultra-low latency (20ms) full HD 1080P video transmission
●Support up to 20Mbps data flow, adaptive dynamic stream allocation technology
●Support multiple bandwidth regulation (2M/4M/8/), adaptive modulation and manual modulation mode selection
● Support diversity antenna receiver
● Support 128 bit AES encryption
● Support transparent PTP&PMD network transmission technology
● Support non line of sight (NLOS), high-speed mobile transmission
● Provide standard RS-232 & RS-485 + RJ45 + Mini HDMI interface
● High definition OLED panel digital display, simple interface easy to operation
● Small size, light weight, low power consumption
Applications:
Widely application for UAV system, high speed railway, fire fighting, security, intelligence control and other complex environments.
HN-550 Technical parameters:
| Model | HN-550TX & HN-550RX |
| Power input | DC 7~17V |
| Power consumption | 12V_1A (full load maximum output power) |
|
Ethernet |
10/100 BaseT,Auto-MDI/X,IEEE 802.3 |
| TCP,UDP,TCP/IP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS | |
| Video input | Mini HDMI interface, RJ45 |
|
Data input |
RS-232&RS-485 |
| RJ45 | |
| Output frequency | 2405MHz-2477MHz,Step 1MHz adjustable |
| Output power | 30dBm |
| RF Antenna interface | MMCX |
| Bandwidth | 2.0 MHz /4.0MHz/8.0MHz |
| Encryption | 128 bit AES |
| Correction mechanism | 32 bit of CRC,ARQ |
| Modulation | TDD-COFDM,Time division duplex mode |
| Video encoding | H.264 |
| Parameter control | By adjusting the parameters of OLED control panel |
| Dimensions | 77mm*51mm*24mm |
| Weight | 120g |
