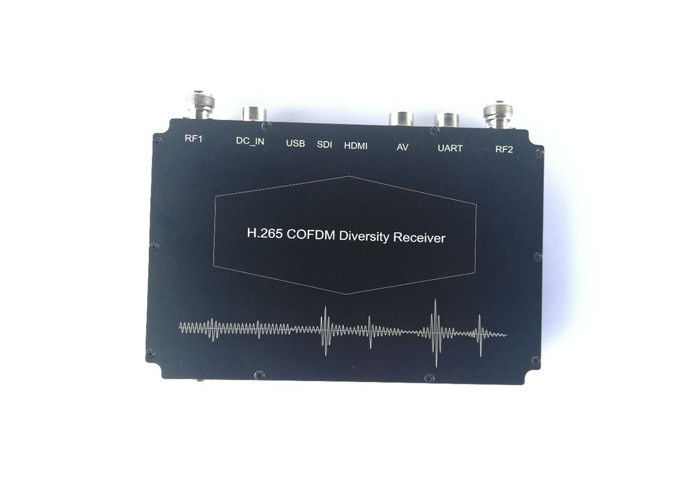

Full HD 1080P COFDM Video Receiver For Firefighting SDI/HDMI/CVBS Output

Full HD 1080P COFDM Video Receiver For Firefighting SDI/HDMI/CVBS Output

  • Full HD 1080P COFDM Video Receiver For Firefighting SDI/HDMI/CVBS Output
  • Full HD 1080P COFDM Video Receiver For Firefighting SDI/HDMI/CVBS Output
Full HD 1080P COFDM Video Receiver For Firefighting SDI/HDMI/CVBS Output
Product Details:
Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: HN-840
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2~3 working days
Payment Terms: T/T
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Demodulation: Cofdm Decoding: H.265/H.264
DATA: Transparent TTL Serial Data Transmission Audio Output: 2 Channels
Video Output: SDI/HDMI/CVBS DC Input Range: DC 6~17V
Highlight:

rf video receiver

,

portable video receiver

H.265 full HD 1080P Cofdm video Receiver SDI/HDMI/CVBS output diversity receiver





Product introduction



HN-840 HD H.265/H.264 IP COFDM Rx HD decoding module, this product has HDMI output interface, CVBS analog audio and video output interface, USB interface, SDI interface, RJ45 interface. The use of non-line-of-sight (NLOS) transmission COFDM multi-carrier demodulation technology, the use of transparent data interface to provide balanced and stable high-speed rate, support HTTP, RTSP, RTMP, UDP (unicast and multicast) protocol. Receive TS stream from the encoder, can set video output resolution according to different needs, highly integrated embedded design. It can help you to complete the design of long-distance wireless links more conveniently and quickly. It can be applied to high-definition digital broadcasting, security systems, public security, armed police, firefighting and other fields. It is widely used in multi-channel video streaming, unmanned control systems with high standards, intelligent control equipment.





Key Features





  • H.265 high-efficiency full HD 1080p decoding compression
  • COFDM ultra-narrowband demodulation technology
  • Support H.264/H.265 full-featured image decoding in COFDM mode
  • Supports military-grade non-standard 128-bit AES decryption
  • Transparent network/serial port high rate transmission
  • Support for USB image recording
  • Support CVBS,HDMI,SDI output
  • Support full-band / ultra-narrow band / multi-bandwidth modulation (1M/2M/4M/8/)
  • Digital panel operation and display, easy to use





Technical characteristics:





Model HN-840
DC input range DC 6~17V
Current mA_12V
Video output CVBS:SD analog video output
SDI:HD digital video output
HDMI:HD digital video output
Working frequency 300MHz~860MHz,Steeping1MHz
(other frequencies on request)
Channel bandwidth 1/2/4/8M
Reverse audio input 2 channels
Audio output 2 Channels
RJ_45 1*RJ_45
DATA Transparent TTL serial data transmission
TS flow protocol Supports HTTP/RTSP/RTMP/UDP
(unicast/multicast) protocols
USB interface Video recording
Decryption method Dynamic 128 bit AES
Video decoding H.264/H.265
Demodulation COFDM
Parameter control method Set related parameters through LCD panel
Dimension 120*65*27mm
