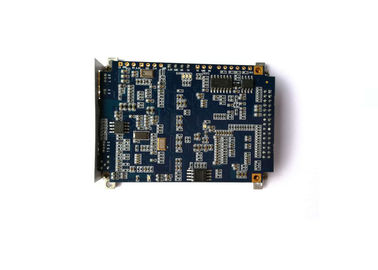

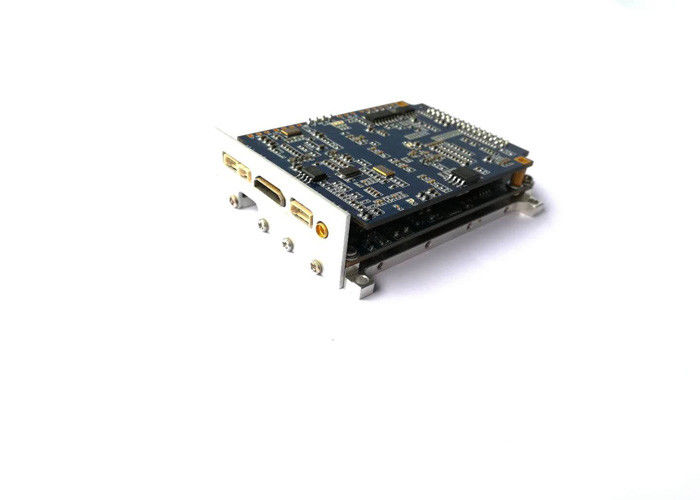

SDI/CVBS/HDMI Transmitter COFDM Module With Low Power Consumption H.264

SDI/CVBS/HDMI Transmitter COFDM Module With Low Power Consumption H.264

  • SDI/CVBS/HDMI Transmitter COFDM Module With Low Power Consumption H.264
  • SDI/CVBS/HDMI Transmitter COFDM Module With Low Power Consumption H.264
SDI/CVBS/HDMI Transmitter COFDM Module With Low Power Consumption H.264
Product Details:
Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: SK-530
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Professional carton box package
Delivery Time: 1~2 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Bandwidth: 2/2.5/4/8MHz Constellation: QPSK,16 QAM,64 QAM
DC Input Range: DC 6~17V Operating Frequency: 180MHz~2700MHz
RF Interface: IPEX Jack Video Encoding: H.264
Modulation: Cofdm 2K Dimensions: 50mm*70mm
High Light:

video transmitter module


ofdm receiver module

HD mini size cofdm module SDI/CVBS/HDMI H.264 wireless transmitter module



Product description:


SK-530 (70mm*50mm) H.264 FHD COFDM transmitter module and SK-620(120mm*65mm)receiver module are belongs to industrial-grade miniaturization full high-definition wireless video transmission module,which support full-functional interface (SDI, HDMI, CVBS ), low latency (200ms) end to end transmission, using military-grade 128-bit dynamic non-standard AES encryption, and transparent serial data transmission can easily loading GPS data, sensor data collection, small size and low power consumption.



Using the support of non line of sight (NLOS) transmission and COFDM multi-carrier modulation technology, with low latency and high efficiency H.264 compression coding method, to improve the coding efficiency and reduce the coding delay, optimization algorithm, anti error rate and further improve the image quality,at the lowest rate to achieve the best image compression. Using advanced video pre-processing technology and efficient video coding algorithm, to provide high quality and low rate of broadcast audio and video signal transmission for high-definition digital television broadcasting system, mobile TV system, IPTV system, making it easy to manage the network expansion problems, greatly enhance the utilization of the available bandwidth, effectively save transmission costs for operators.



Key features:


  • Using COFDM modulation technology,low latency with H.264 image encoding technology
  • Support non-line of sight (NLOS), high-speed mobile transmission
  • Multi-functional Interface (SDI, HDMI, CVBS)
  • Low latency (200ms) end to end transmission
  • Transparent serial data transmission (9600,19200,115200)
  • Military-grade non-standard AES 128-bit dynamic encryption
  • Support multiple bandwidth output (2M / 2.5M / 4M / 8 /)
  • Multiple video formats full HD1080_30p / 50p / 60p / 50i / 60i, HD720_50p / 60p, SD480i / 576i
  • Provide high-definition LCD control panel, simple and efficient user interface
  • Small size, low power consumption



SK-530 Technical parameters


Model SK-530
DC input range DC 6~17V
Working current 400mA_12V
Video input SDI:Support 1080P,720P,576,480,with audio de-embedding function
HDMI:Support HD1080P,720P,576,480
CVBS:external SD analog video signal
Radio Frequency 180MHz~2700MHz,Stepping 1MHz(other frequencies on request)
Bandwidth 2/2.5/4/8MHz
Output Power -20dbm~0dbm,Step 1 dBm (adjustable,can customized)
Encryption AES 128(dynamically encryption key)
Modulation COFDM 2K
Constellation QPSK,16 QAM,64 QAM
FEC 1/2,2/3,3/4,7/8
Guard Interval 1/32,1/16,1/8,1/4
Video compression type H.264
Parameter control mode Through LCD display panel to set the relevant parameters
RF interface IPEX jack
Dimensions 50mm*70mm
