Place of Origin: | shenzhen |
Brand Name: | Huanuo |
Certification: | CE/FCC/ROHS |
Model Number: | HN-512AV |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Negotiation |
Packaging Details: | Carton |
Delivery Time: | 2~3 working days |
Payment Terms: | T/T |
Supply Ability: | 500 pieces per month |
Video Input: | CVBS | Channel Bandwidth: | 2/4/8MHz |
---|---|---|---|
Working Frequency: | 300~1500MHZ,Stepping 1MHz | Encryption: | AES128 |
Video Encoding: | MPEG-2 | Modulation: | COFDM |
Output Power: | 20dbm | Weihgt: | 54g |
Highlight: | ofdm receiver module,cofdm hd video transmitter |

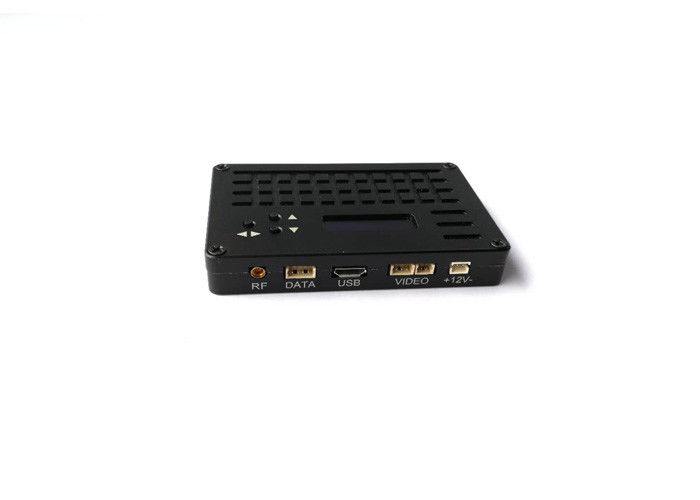

the smallest cofdm video transmitter , lightweight 54g wireless AV video transmitter
Product introduction
HN-512AV H.264 COFDM wireless video transmission equipment.Using high efficiency and innovative H.264 compression encoding,integrated molding design,integrating digital modulation,audio and video compression,highly integrated high-definition movement,non line-of-sight digital image transmission equipment,small size, light weight, can be in a building block environment or high speed mobile transmission high-quality video and audio.
Key feature
●Using COFDM modulation technology,H.264 image encoding technology
●Support 128 bit dynamic AES encryption
●Highly integrated combination of modular design
●The fin-type aluminum chassis, small size, light weight, easy to carry
●Support non line of sight (NLOS), high-speed mobile transmission
Technical Specification
Model | HN-512AV |
Working voltage | DC 6~12V |
Working current | 420mA_12V |
Video input | CVBS:480i/576i |
Channel bandwidth | 2/4/8MHz |
Working frequency |
300~1500MHZ,Stepping 1MHz (can customized other frequency) |
Output power | 20 dBm (can cusomized) |
RF Antenna interface | MMCX |
Encryption mode | AES 128 |
FEC | 1/2,2/3,3/4,4/5,5/6,7/8 |
Guard interval | 1/32,1/16,1/8,1/4 |
Video encoding | MPEG-2 |
Modulation | COFDM |
Modulation mode | QPSK,QAM16,QAM64 |
Parameter control mode | Through external LCD display panel or pin setting related parameters |
Dimension | 73mm*48mm*12mm |
Weight | 54g |
Application
This product is widely used in high quality and high standard requirements of aerial photography, covert detection,video surveillance,wireless video transmission in real time and other fields.
Model | HN-320 |
Voltage | DC 6~15V |
Current | 350mA_12V |
Receive sensitivity | -102dBm/2MHz |
Video output | CVBS:Support D1 SD resolution |
HDMI:Support HD1080,720P,576,480 | |
Bandwidth | 2/2.5/4/8MHz |
Radio frequency | 300MHZ—860MHz,stepping 1MHz |
Input | SMA |
Decoding | MPEG2/H.264 |
Demodulation | COFDM |
Parameter control
mode |
Through the LCD display panel to set the
related parameters |
Dimension | 125mm*73mm*26mm |
