Place of Origin: | China |
Brand Name: | Huanuo |
Certification: | CE/FCC/ROHS |
Model Number: | HN-220T |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Negotiation |
Packaging Details: | Professional carton box package |
Delivery Time: | 2~3 working days |
Payment Terms: | T/T |
Supply Ability: | 500 pieces per month |
DC Input: | DC 12~15V | Video Input: | CVBS |
---|---|---|---|
Audio Channel: | 2 Channel | Working Bandwidth: | 2MHZ/4MHZ/8MHZ |
Operating Frequency: | 300~2400MHz,stepping 1MHz | Output Power: | 32dbm |
Highlight: | av wireless sender,av signal transmitter |

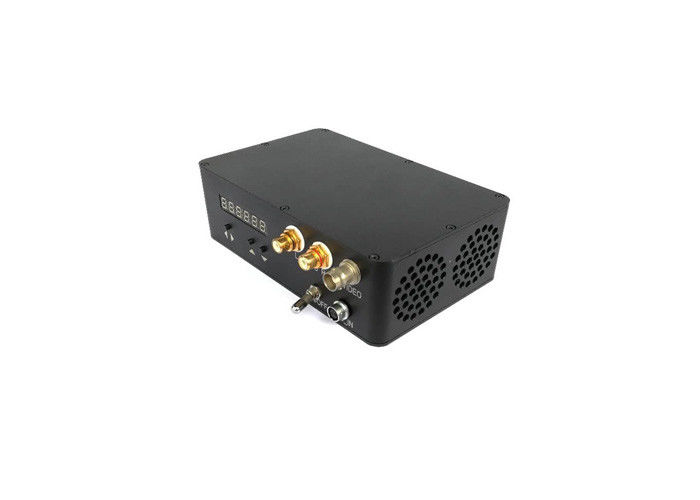

H.264 wireless av transmitter CVBS long range Wireless Audio Video Transmitter
Product introduction
HN-220T Low-Delay COFDM Wireless Image Transmission Transmitter, which adopts composite NTSC/PAL video preprocessing technology and efficient video coding algorithm to improve coding efficiency, reduce coding delay, algorithm optimization,anti-error rate and further improve the image quality, and the best image compression effect can be achieved at the lowest bit rate.
Key Features
●Supports high-definition analog video NTSC/PAL input
●Adopt COFDM modulation technology, MPEG-2 image compression processing
●Highly integrated modular design, small size
●Support NLOS high speed mobile transmission
●Full aluminum alloy design, good heat dissipation
Technical Characteristic
Model | HN-220T |
Input voltage | DC 12~15V |
Working Current | 2A_12V |
Video input | CVBS:480i/576i |
Audio channel | 2 channel |
Working bandwidth | 2.0/4.0/8.0MHz |
Operating frequency | 300~2400MHz,stepping 1MHz |
Output power | 32dBm |
RF interface | N type |
video encoding | H.264 |
Modulation | COFDM |
Constellation | QPSK |
Parameter control method | Set related parameters through LED digital tube |
Dimension | 158mm*100mm*52mm |
