| Demodulation: | Cofdm | Radio Frequency: | 300-860MHz,stepping 1MHz |
|---|---|---|---|
| Video Display: | 10.1 HD TFT LCD | Pixel Format: | 1920X1200 |
| Decoding: | MPEG2/H.264 | Weight: | 1500g |
| Highlight: | rf video receiver,portable video receiver |
||

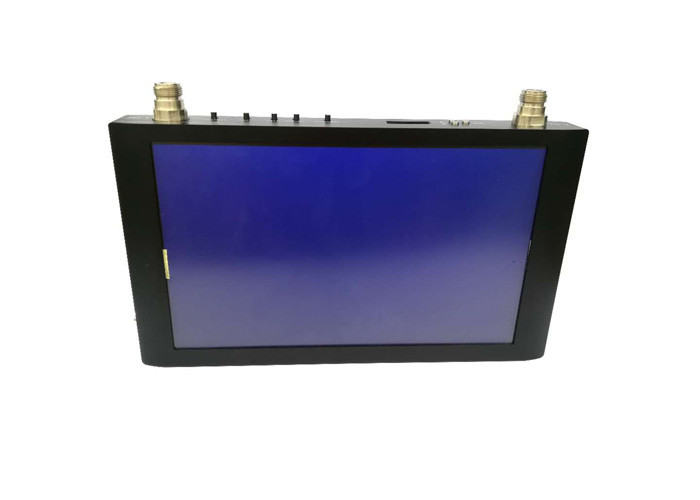

10.1 inch UHF band cofdm video receiver full HD 1080P hand-held dual antenna
Product introduction
HN-430HD 10.1 inch full HD hand-held video Receiver,small size,light weight.The use of advanced multi-carrier diversity reception technology to support high-speed mobile and non-line sight reception.Use full HD 1920X1200 10.1 inch 16:10 color TFT-LCD to display,provide simple operation and perfect image,Which are widely used in security, fire fighting, radio and television,emergency communications, unmanned aerial vehicles and other fields.
Product features
●Support COFDM mode H.264/MPEG2 full-featured video decoding
●Provide 3.5mm standard audio video output interface
●Support dual antenna multi-carrier diversity reception
●10.1 inch High-definition 1920X1200 display screen
●Support HD1080P, 720P, 576,480
●Battery integrated design, small size, light weight, high reliability
Technical characteristics
| Model | HN-430HD |
| Voltage | DC12V |
|
Built-in lithium battery, It can continuously work over 4 hours |
|
| Receive sensitivity | -104dBm/2MHz |
| AV output | Audio:3.5mm port,Analog audio output |
| CVBS:3.5mm port,Analog video output | |
| Video display | 10.1 HD TFT LCD |
| Pixel format | 1920X1200 |
| Radio Frequency | 300-860MHz,stepping 1MHz |
| Bandwidth | 2/2.5/4/8MHz |
| Demodulation | COFDM |
| Decoding | MPEG2/H.264 |
| Decryption | Dynamic 128 bit AES decryption |
| Parameter control mode | Through control panel to set the relevant parameters |
| RF signal input port | N-type(50Ω)high performance dual channel diversity reception |
| Dimensions | 158mm*262mm*33mm |
| Weight | 1500g |
